Throttle Body Assembly Replacement Engine Control Air Metering/Acceleration Throttle

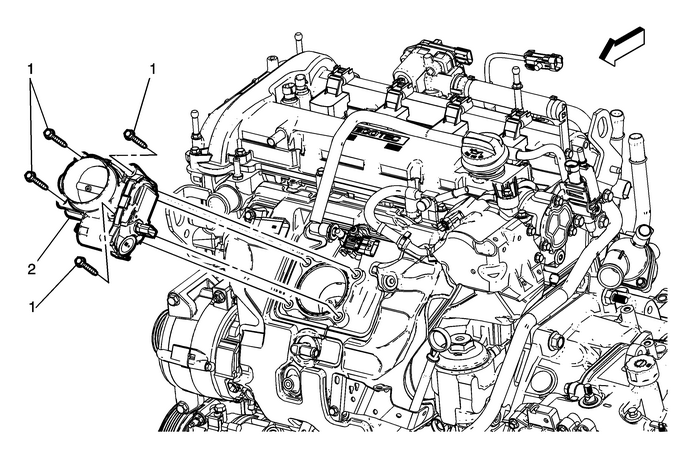

Throttle Body Assembly Replacement

Callout

Component Name

Preliminary Procedure

Remove the air cleaner outlet duct. Refer toAir Cleaner Outlet Duct Replacement

1

Throttle Body Assembly Fastener (Qty:-4)

Caution:Refer toFastener Caution.

Procedure

Disconnect the electrical connector.

Tighten

10-Y(89-lb-in)

2

Throttle Body Assembly

ProcedureDisconnect the electrical connector.Use a NEW throttle body O-ring.Perform the throttle learn procedure. Refer toQ38 Throttle Body: Throttle/Idle Learn.
