Tail Lamp Replacement (Terrain) Lighting Exterior Lighting Tail Lamp

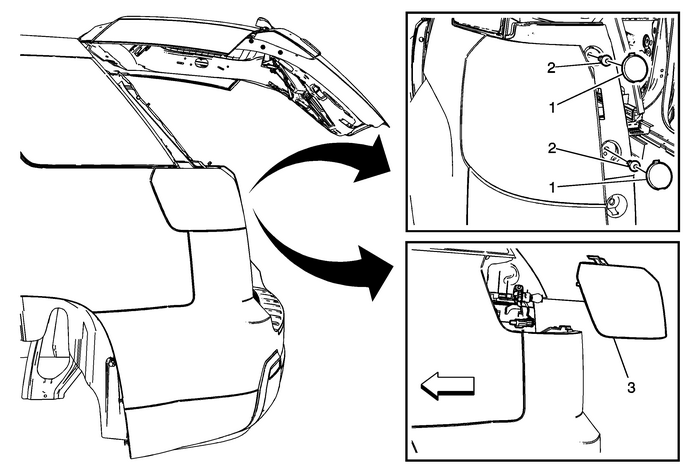

Tail Lamp Replacement

Callout

Component Name

Preliminary Procedure

Open and support the liftgate assembly.

1

Tail Lamp Access Hole Cover (Qty:-2)

Tip:Use a small flat bladed tool to aid in the removal of theaccess hole covers.

2

Tail Lamp Screw (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

3

Tail Lamp Assembly

ProcedurePull outward at the forward edge of the tail lamp assembly todisengage the upper locator pin and lower tab from the tail lamppocket.Disconnect the electrical connector.Remove the tail lamp assembly from the vehicle.
