Chevrolet Equinox Service Manual: Structure Identification

Structure Identification

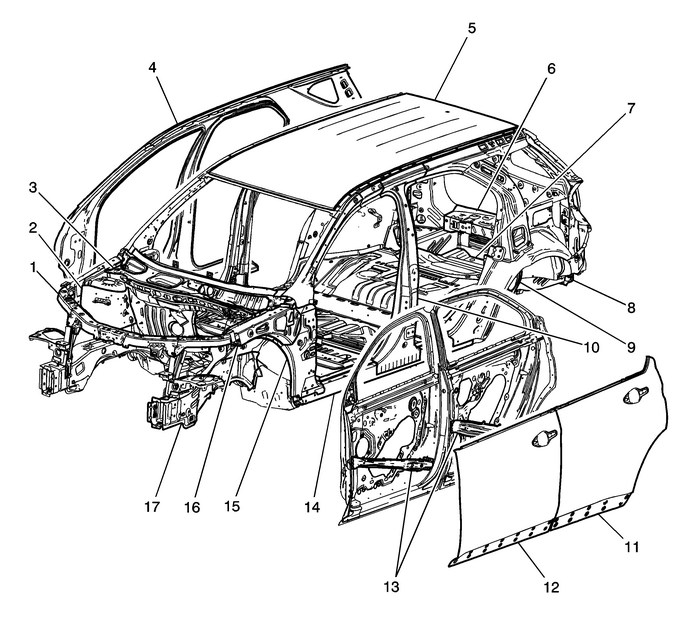

Structure Identification (Coupe)

Number

Description

Materials

Procedure

1

Radiator Support Assembly

Mild Steel

Front End Upper Tie Bar Replacement

2

Front Wheelhouse Assembly

Mild Steel

Front Wheelhouse Panel Replacement

3

Plenum Upper

Mild Steel

Plenum Upper Panel Replacement

4

Body Side Outer

Body Side Outer

Mild Steel

A-Pillar and Roof Rail ReinfsDual Phase Steel
Center Pillar Outer Panel Reinforcement ReplacementQuarter Outer Panel Sectioning

5

Roof Outer Panel

Mild Steel

Roof Outer Panel Replacement

6

Rear End Panel

Mild Steel

Body Rear End Panel Replacement

7

Rear Floor Panel

Mild Steel

Rear Floor Panel Replacement

8

Rear Rail Assembly

Mild Steel

Rear Rail ReplacementRail Replacement - Rear Section

9

Rear Wheelhouse

Mild Steel

Rear Wheelhouse Inner Panel Replacement

10

Center Pillar

Reinf - C/Plr Otr, Reinf - C/Plr Inr Lwr, Reinf - C/PlrCtr

Mild Steel

C/Plr Inr, Reinf - C/Plr Inr, Reinfs - C/Plr Otr Upr

Dual Phase Steel

Center Pillar Outer Panel Reinforcement Replacement

11

Rear Side Door

Mild Steel

Rear Side Door Outer Panel Replacement

12

Front Side Door

Mild Steel

Front Side Door Outer Panel Replacement

13

Side Door Impact Beams

Ultra High Strength Steel

Not Serviced

14

Rocker Panel

Ultra High Strength Steel

Rocker Inner Panel Reinforcement Replacement

15

Front Panel

Mild Steel

Front Inner Hinge Pillar Body ReplacementFront Hinge Pillar Body Sectioning

16

Upper Rail

Mild Steel

Front Compartment Upper Side Rail Replacement

17

Front Rail Assembly

Mild Steel

Front Compartment Front Rail ReplacementFront Compartment Inner Side Rail ReplacementUnderbody Outer Front Side Rail Replacement
