Steering Angle Sensor Replacement Sensors Steering Angle Sensor

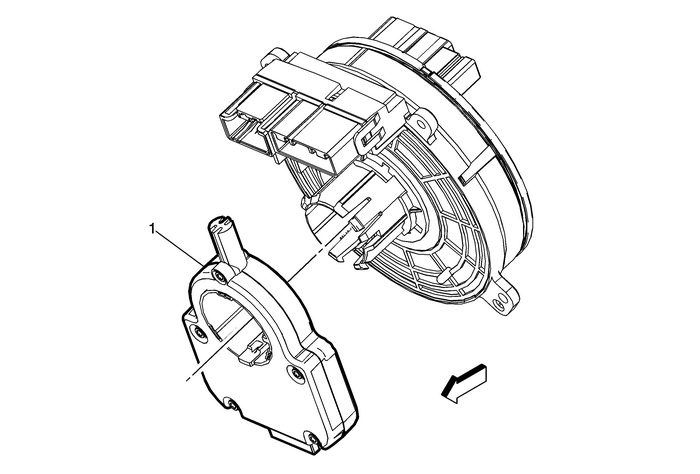

Steering Angle Sensor Replacement

Callout

Component Name

Preliminary Procedure

Remove the steering wheel airbag coil. Refer toSteering Wheel Airbag Coil Replacement.

1

Steering Angle Sensor

ProcedurePress in the clip on the steering wheel airbag coil in orderto remove the steering angle sensor.After the installation is complete, center the steering anglesensor. Refer toSteering Angle Sensor Centering.
