Chevrolet Equinox Service Manual: Special Tools (Diagnostic Tools) Engine Control

Chevrolet Equinox Service Manual / Powertrain / Internal Combustion Powertrain Control / Special Tools (Diagnostic Tools) Engine Control

Illustration

Tool Number/Description

Special Tools (Diagnostic Tools) Engine Control

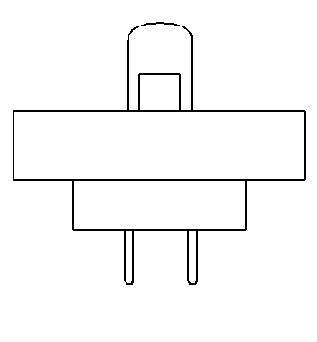

CH-34730-2C

J-34730-2C

Injector Test Lamp

Special Tools (Diagnostic Tools) Engine Control

CH-38641-B

J-38641-B

Diesel Fuel Quality Tester

Special Tools (Diagnostic Tools) Engine Control

CH-39021-301

J-39021-301

Fuel Injector Harness Adapter

Special Tools (Diagnostic Tools) Engine Control

CH-39021-460

J-39021-460

Fuel Injector Test Adapter

Special Tools (Diagnostic Tools) Engine Control

CH-41415-30

GE-41415-30

J-41415-30

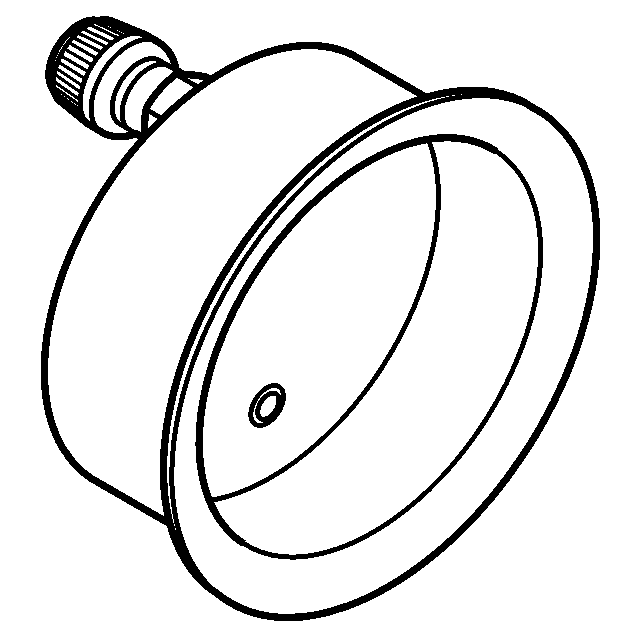

Fuel Tank Cap Adapter

Special Tools (Diagnostic Tools) Engine Control

CH-42960-2

J-42960-2

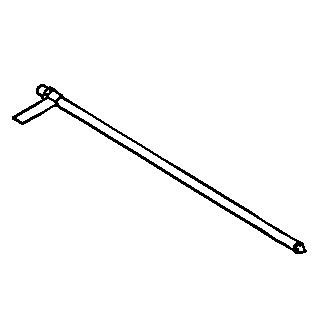

Fuel Flapper Door Holder

Special Tools (Diagnostic Tools) Engine Control

CH-42982

J-42982

Fuel Pressure Gauge Adapter

Special Tools (Diagnostic Tools) Engine Control

CH-44175-A

J-44175-A

Fuel Composition Tester

Special Tools (Diagnostic Tools) Engine Control

CH-45004

J-45004

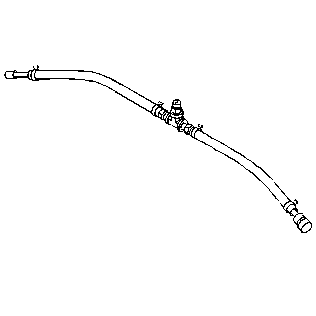

Fuel Tank Drain Hose

Special Tools (Diagnostic Tools) Engine Control

CH-45873

J-45873

Fuel Return Volume Test Kit

Special Tools (Diagnostic Tools) Engine Control

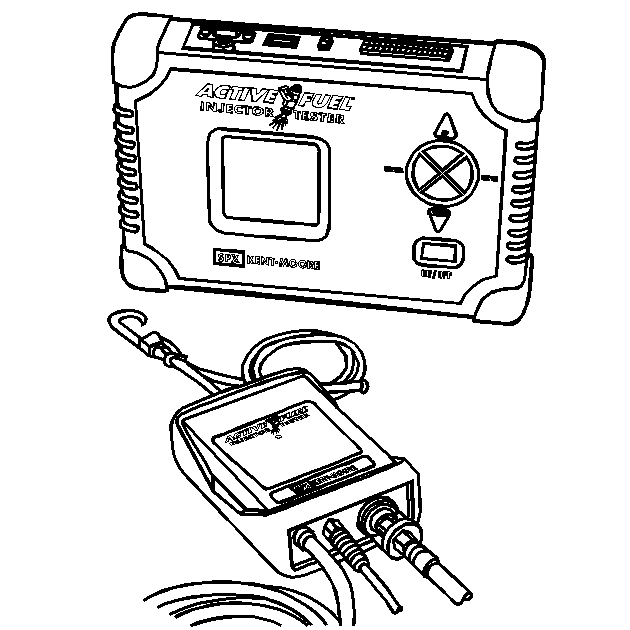

CH-47976

Active Fuel Injector Tester (AFIT)

Special Tools (Diagnostic Tools) Engine Control

CH-47976-75

Fuel Injector Harness Adapter

Special Tools (Diagnostic Tools) Engine Control

CH-48027

Fuel Pressure Gauge

Special Tools (Diagnostic Tools) Engine Control

CH-48096

EVAP Service Access Port Tool

Special Tools (Diagnostic Tools) Engine Control

CH-50375

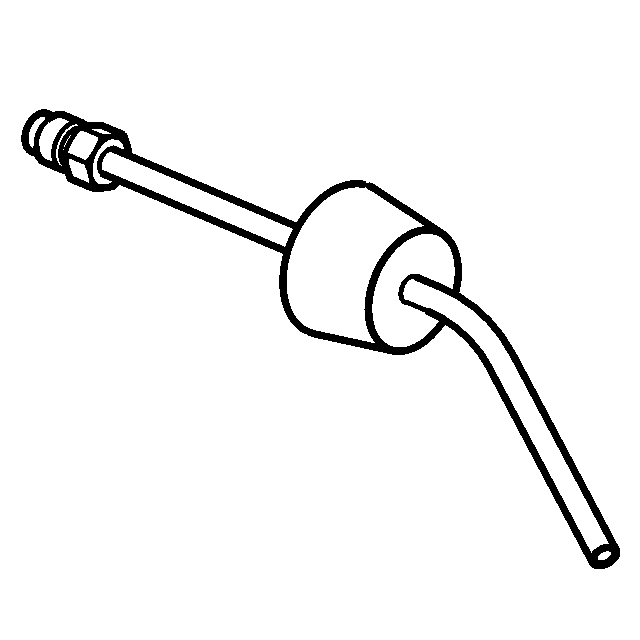

Diesel Injector Return Line Pressure Adapter

Special Tools (Diagnostic Tools) Engine Control

CH-50377-A

Injector Return Line Cap

Special Tools (Diagnostic Tools) Engine Control

CH-50378

Injector Return Leakage Test Adapter

Special Tools (Diagnostic Tools) Engine Control

EL-26792

J-26792

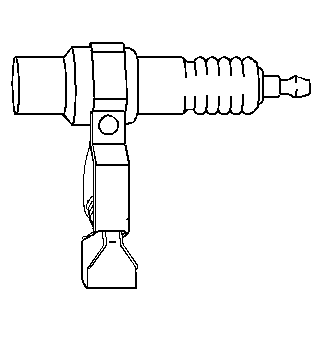

HEI Spark Tester

Special Tools (Diagnostic Tools) Engine Control

EL-34730-405

J-34730-405

Injector Test Lamp

Special Tools (Diagnostic Tools) Engine Control

EL-36169-HD

Heavy Duty Fused Jumper

Special Tools (Diagnostic Tools) Engine Control

EL-38522-A

J-38522-A

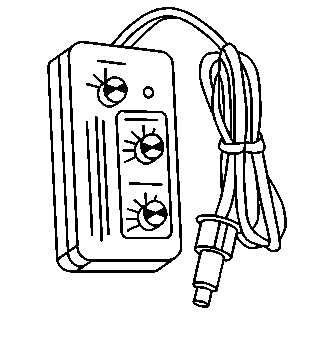

Variable Signal Generator

Special Tools (Diagnostic Tools) Engine Control

EL-39021

J-39021

Fuel Injector Coil Balance Tester

Special Tools (Diagnostic Tools) Engine Control

EL-39021-460

J-39021-460

Fuel Injector Test Adapter

Special Tools (Diagnostic Tools) Engine Control

EL-42598-B

J-42598-B

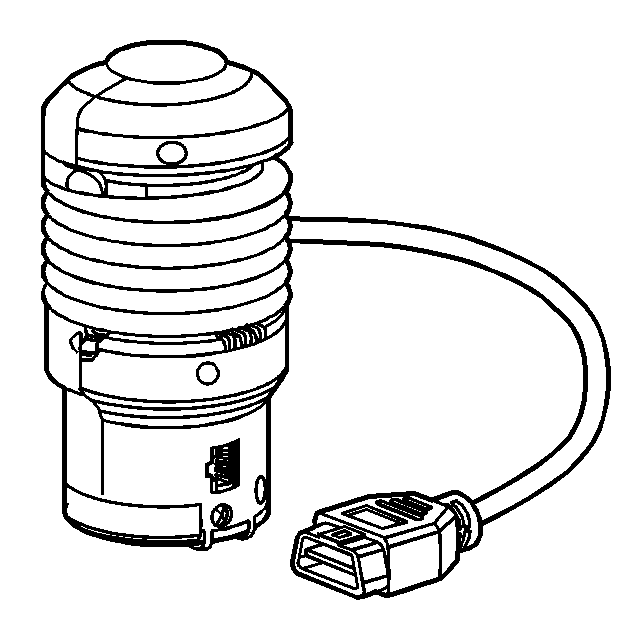

Vehicle Data Recorder

Special Tools (Diagnostic Tools) Engine Control

EL-43244

J-43244

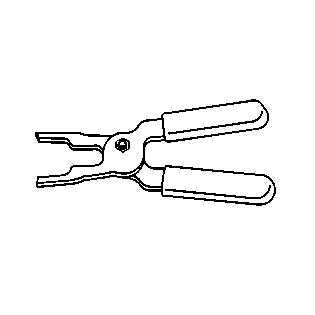

Relay Puller Pliers

Special Tools (Diagnostic Tools) Engine Control

EL-44603

J-44603

Injector Test Lamp

Special Tools (Diagnostic Tools) Engine Control

EN-34730-91

J-34730-91

KM-J-34730-91

Pressure Tester

Special Tools (Diagnostic Tools) Engine Control

EN-36012-A

J-36012-A

Ignition System Diagnosis Harness

Special Tools (Diagnostic Tools) Engine Control

EN-37287

J-37287

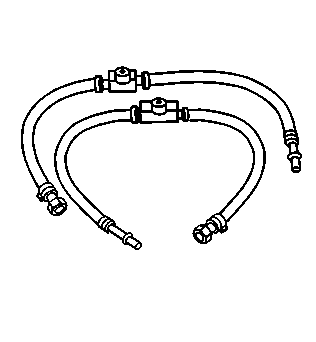

Fuel Line Shut-off Adapters

Special Tools (Diagnostic Tools) Engine Control

EN-39021-210

J-39021-210

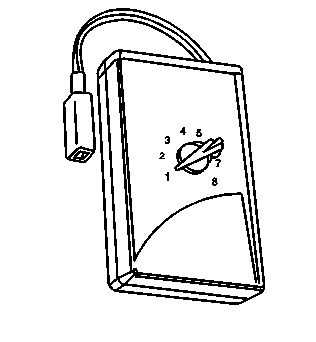

Injector Tester Adapter Box

Special Tools (Diagnostic Tools) Engine Control

EN-41413-311

J-41413-311

EVAP Plug

Special Tools (Diagnostic Tools) Engine Control

GE-41413-A

EN-41413-A

J-41413-A

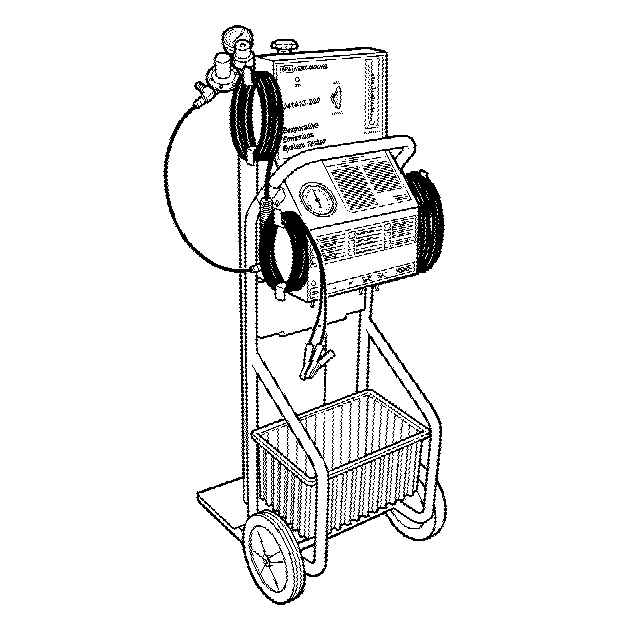

Evaporative Emissions System Tester (EEST)

Special Tools (Diagnostic Tools) Engine Control

EN-41413-VLV

J-41413-VLV

EVAP Service Port Vent Fitting

Special Tools (Diagnostic Tools) Engine Control

EN-44602

J-44602

Injector Test Adapter

Special Tools (Diagnostic Tools) Engine Control

EN-45873-30

J-45873-30

Injector Flow Test Adapter

Special Tools (Diagnostic Tools) Engine Control

EN-46091

J-46091

Charge Air Cooler Tester

Special Tools (Diagnostic Tools) Engine Control

EN-46091-15A

J-46091-15A

Diesel Engine Pressure Test Adapter

Special Tools (Diagnostic Tools) Engine Control

EN-46091-5

J-46091-5

Charge Air Cooler Tester Adapter

Special Tools (Diagnostic Tools) Engine Control

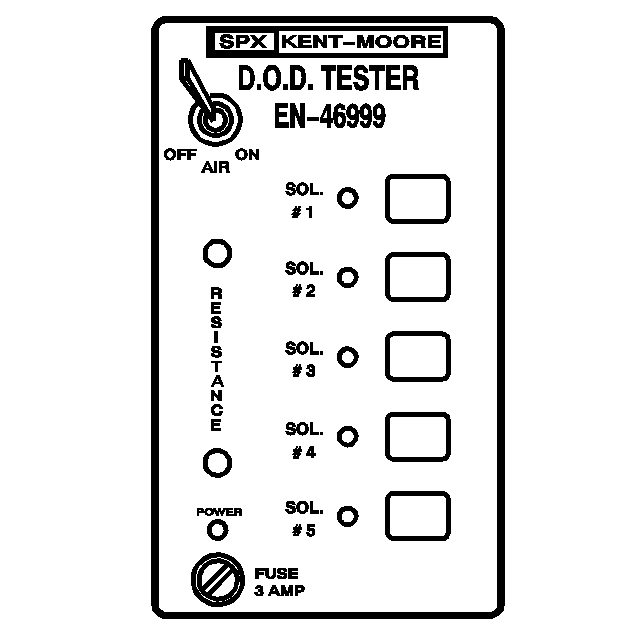

d.o.d.testeren-46999

EN-46999

Displacement On Demand Electric Tool

Special Tools (Diagnostic Tools) Engine Control

EN-47603

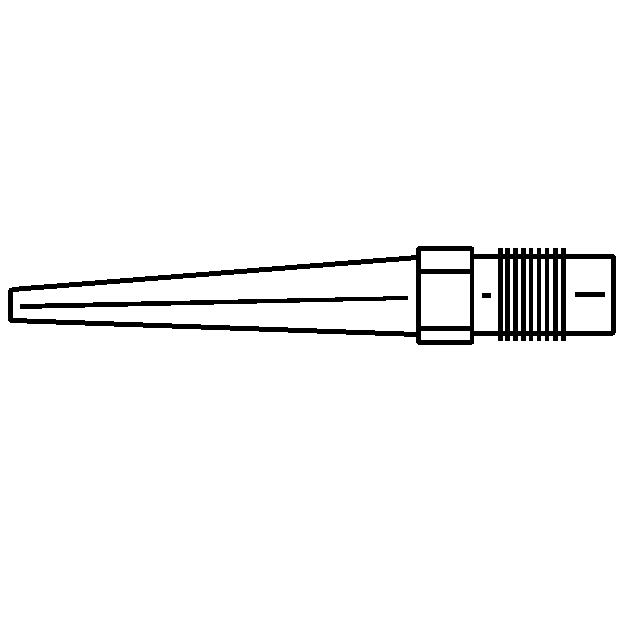

Compression Gauge Adapter

Special Tools (Diagnostic Tools) Engine Control

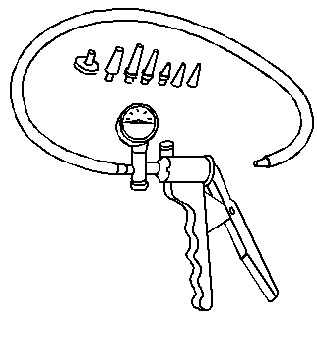

GE-23738-A

J-23738-A

Vacuum Pump

Special Tools (Diagnostic Tools) Engine Control

GE-41413-300

EN-41413-300

J-41413-300

EVAP Cap and Plug Kit

Special Tools (Diagnostic Tools) Engine Control

GE-41413-SPT

J-41413-SPT

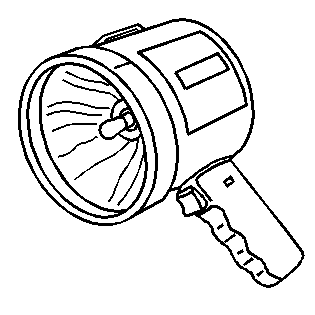

High Intensity White Light

Special Tools (Diagnostic Tools) Engine Control

GE-41415-50

J-41415-50

Fuel Tank Cap Adapter

Special Tools (Diagnostic Tools) Engine Control

GE-41415-60

Engine Induction System Leak Test Adapter

Special Tools (Diagnostic Tools) Engine Control

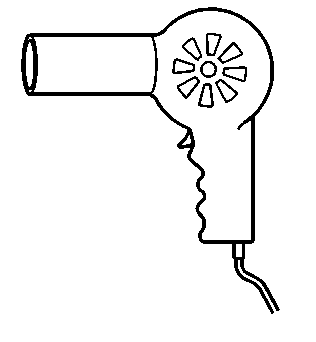

J-25070

Heat Gun 260–399°C (500–750°F)

Special Tools (Diagnostic Tools) Engine Control

J-34730-375

Injector Test Lamp
