Chevrolet Equinox Service Manual: Special Tools

Illustration

Tool Number/ Description

Special Tools

CH-39570

J 39570

Chassis Ear

Special Tools

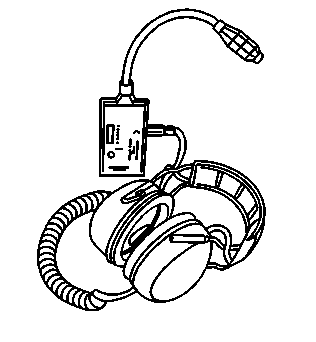

GE-41416

J 41416

Ultrasonic Leak Detector

Special Tools
