Chevrolet Equinox Service Manual: Secondary Timing Chain Guide Replacement - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain

Chevrolet Equinox Service Manual / Powertrain / Engine / Secondary Timing Chain Guide Replacement - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain

Removal ProcedureRemove the spark plugs in order to ease crankshaft/enginerotation. Refer toSpark Plug Replacement.Remove the engine front cover. Refer toEngine Front Cover Replacement.Remove the right bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Removal - Right Side.

Secondary Timing Chain Guide Replacement - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain

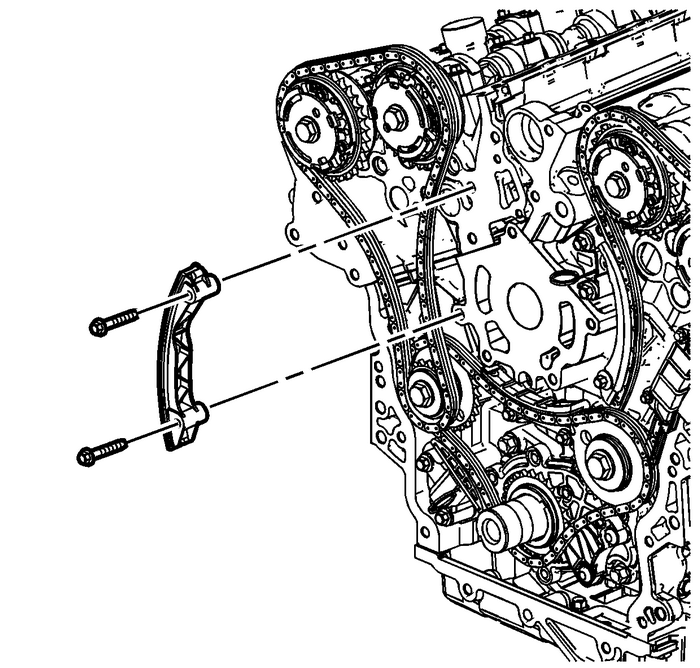

Remove the right bank secondary camshaft drive chain guide.Refer toSecondary Timing Chain Guide Removal - Right Side.Installation Procedure

Secondary Timing Chain Guide Replacement - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain

Install the right bank secondary camshaft drive chain guide.Refer toSecondary Timing Chain Guide Installation - Right Side.Install the right bank secondary camshaft drive chaintensioner. Refer toSecondary Timing Chain Tensioner Installation - Right Side.Install the engine front cover. Refer toEngine Front Cover Replacement.Install the spark plugs. Refer toSpark Plug Replacement.
