Secondary Timing Chain Guide Installation - Left Side Valvetrain Valvetrain Timing Timing Belt/Chain

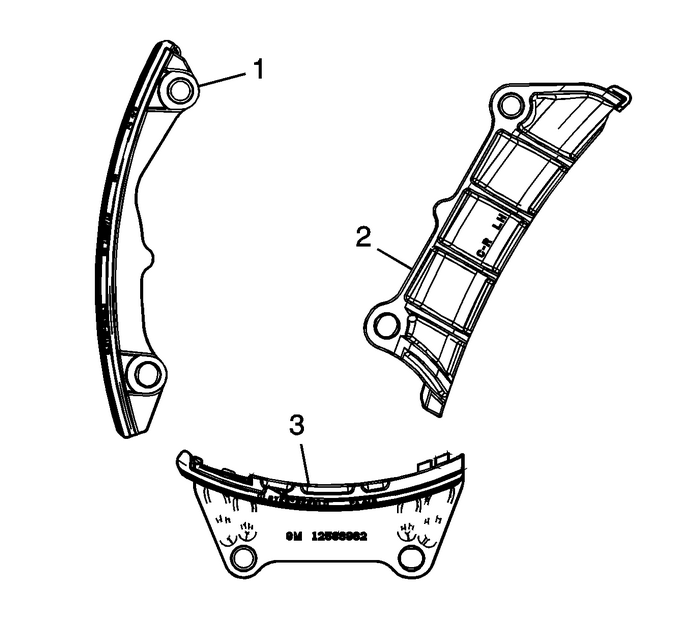

Ensure that the left secondary camshaft drive chainguide-(2) is being installed.

Secondary Timing Chain Guide Installation - Left Side Valvetrain Valvetrain Timing Timing Belt/Chain

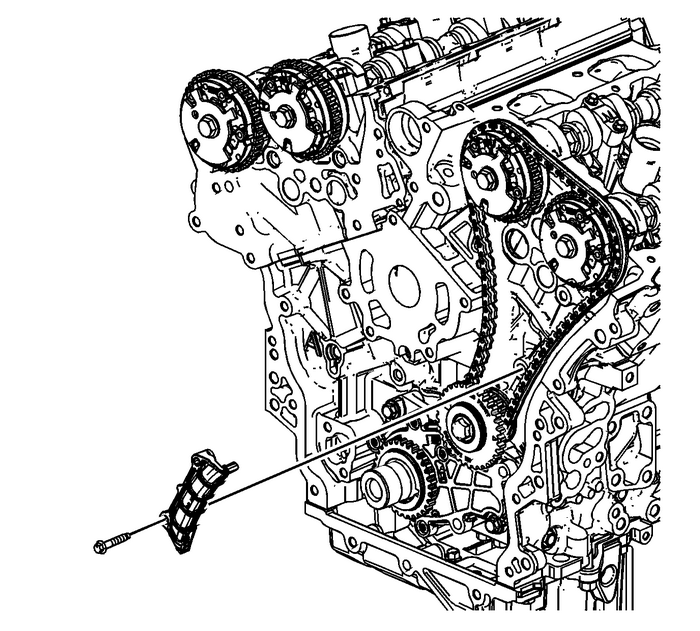

Position the left secondary camshaft drive chainguide.

Caution:Refer toFastener Caution.

Install the secondary camshaft drive chain guide bolts andtighten to25-Y(18-lb-ft).
