Secondary Air Injection Pump Replacement Engine Control

Secondary Air Injection Pump Replacement

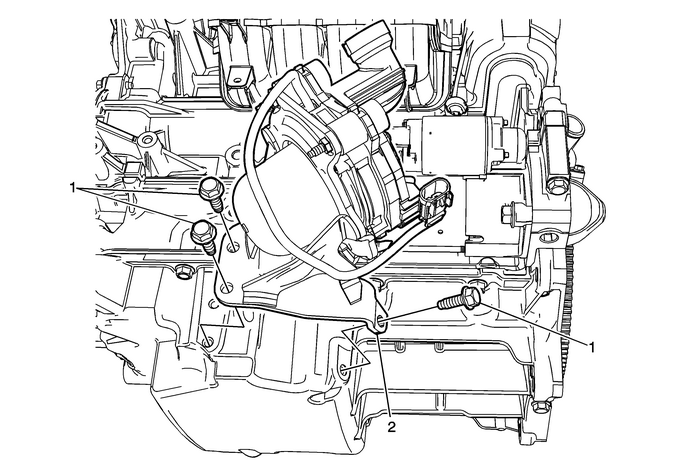

Callout

Component Name

Preliminary ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Disconnect the secondary injection pump inlet hose. Refer toSecondary Air Injection Pump Inlet Hose ReplacementDisconnect the secondary injection check valve pipe. Refer toSecondary Air Injection Check Valve Pipe Replacement

1

Secondary Air Injection Pump Bolt (Qty: 3)

Caution:Refer toFastener Caution.

Tighten

22-Y(16-lb-ft).

2

Secondary Air Injection Pump
