Secondary Air Injection Check Valve Removal - Bank 2 Emissions Air Injection

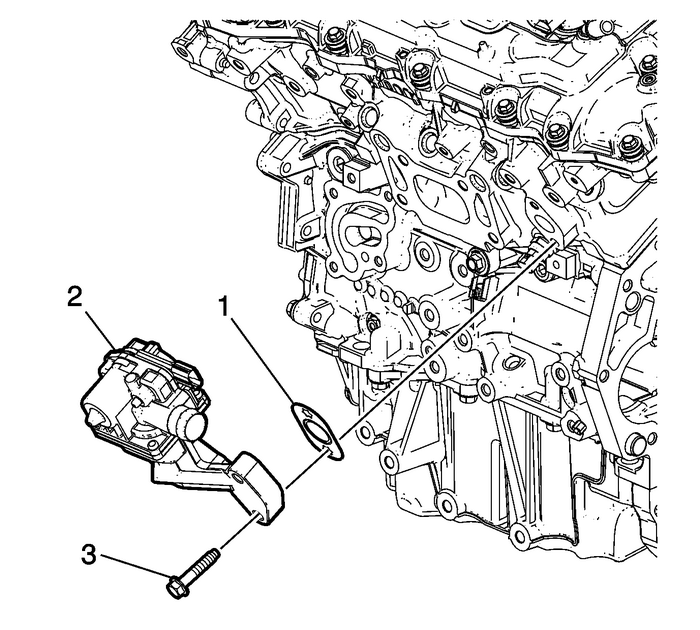

Remove the secondary air injection-(SAI) checkvalve bolts-(3).Remove the SAI check valve-(2).Remove and discard the SAI check valvegasket-(1).

Secondary Air Injection Check Valve Removal - Bank 1 Emissions Air Injection
Remove the secondary air injection-(SAI) checkvalve bolts-(1).Remove the SAI check valve-(2).Remove and discard the SAI check valvegasket-(3). ...

Exhaust Manifold Removal (LAF, LEA, or LUK) Exhaust Exhaust Manifold
Remove the secondary air injection bolts-(2) andnuts-(1).Remove the secondary air injection studs-(3 and4).Remove the secondary air injection valveassembly-(1).Remove the secondary air injection gaske ...
