Secondary Air Injection Check Valve Pipe Replacement Engine Control

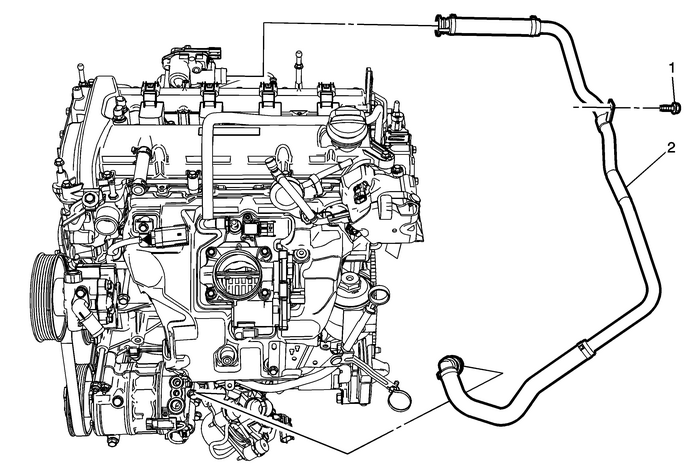

Secondary Air Injection Check Valve Pipe Replacement

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.

Secondary Air Injection Check Valve Pipe Fastener

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in).

Secondary Air Injection Check Valve Pipe

Procedure

Disconnect the quick connect fittings by squeezing both sides.

Plastic Collar Quick Connect Fitting Service Engine Control

Removal ProcedureWarning:Refer toGasoline/Gasoline Vapors Warning.Note:There are several types of Plastic Collar Fuel andEvaporative Emission Quick Connect Fittings used on thisvehicle.Bartholomew-(1) ...

Secondary Air Injection Check Valve Replacement Engine Control

Secondary Air Injection Check Valve ReplacementCalloutComponent NamePreliminary ProcedureRemove the exhaust manifold heat shield. Refer toExhaust Manifold Heat Shield Replacement.1Secondary Air Inject ...
