Rear Wheelhouse Liner Replacement (Terrain) Panels Wheel Well Liner

Rear Wheelhouse Liner Replacement

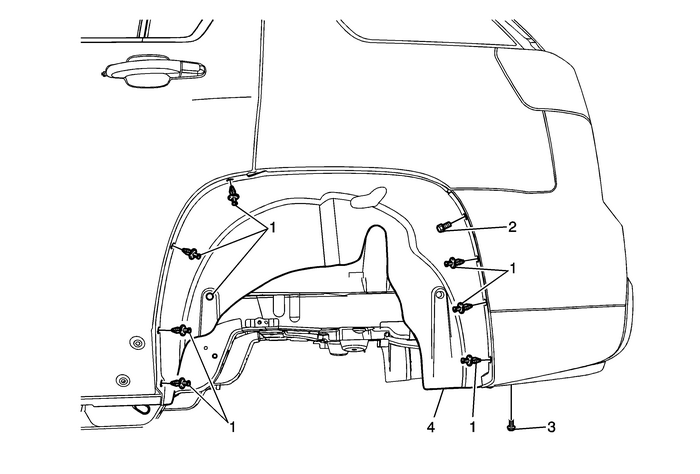

Callout

Component Name

Preliminary Procedure

Remove the tire and wheel assembly. Refer toTire and Wheel Removal and Installation.

1

Rear Wheelhouse Panel Liner Push-In Retainer(Qty:-7)

2

Rear Wheelhouse Panel Liner Screw

Caution:Refer toFastener Caution.

Tighten

6-Y(53-lb-in)

3

Rear Wheelhouse Panel Liner Screw

Tighten

6-Y(53-lb-in)

4

Rear Wheelhouse Panel Liner
