Rear Side Door Trim Panel Replacement Trim Panels/Welts

Rear Side Door Trim Panel Replacement

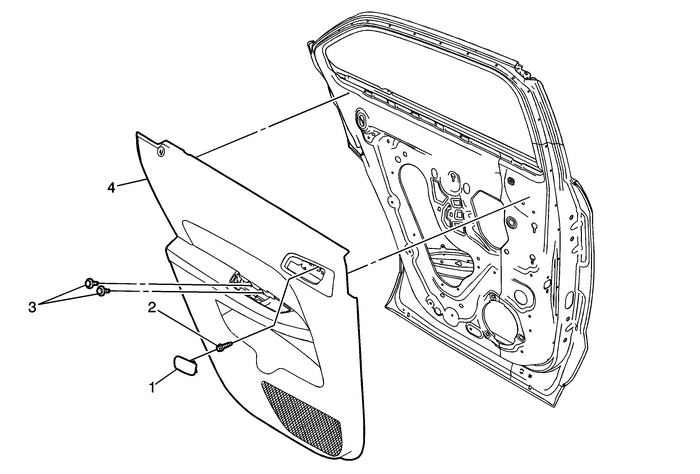

Callout

Component Name

Preliminary Procedure

Remove the rear door accessory switch mount plate. Refer toRear Side Door Accessory Switch Mount Plate Replacement.

1

Rear Side Door Inside Handle Bolt Cap

Procedure

Pull the handle back to remove the cap. Use a suitable toolto unsnap.

2

Rear Side Door Inside Handle Fastener

Caution:Refer toFastener Caution.

Tighten

2.5-Y-(22-lb-in)

3

Rear Side Door Pull Handle Fastener(Qty:-2)

Tighten

3-Y-(27-lb-in)

4

Rear Side Door Trim Panel Assembly

ProcedureUse a door trim panel removal tool or equivalent to aid inthe removal of the retainer.Pull upwards on the door lock retainer cable todisengage.Disconnect the electrical connectors.
