Rear Side Door Auxiliary Weatherstrip Replacement Panels

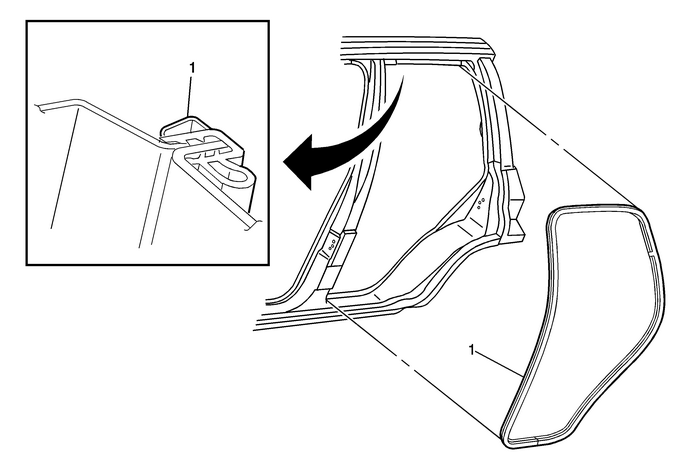

Rear Side Door Auxiliary Weatherstrip Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear side door opening floor carpet retainer.Refer toRear Side Door Opening Floor Carpet Retainer Replacement.

1

Rear Side Door Auxiliary Weatherstrip

ProceduresReposition trim panels if necessary to allow the weatherstripto be removed.Align the weatherstrip to the door opening with the bondjoint positioned at the lower center of the door opening.Install the weatherstrip to the pinch-weld flange. Ensure theweatherstrip is fully seated.
