Rear Seat Retractor Side Belt Replacement Seats Rear

Rear Seat Retractor Side Belt Replacement

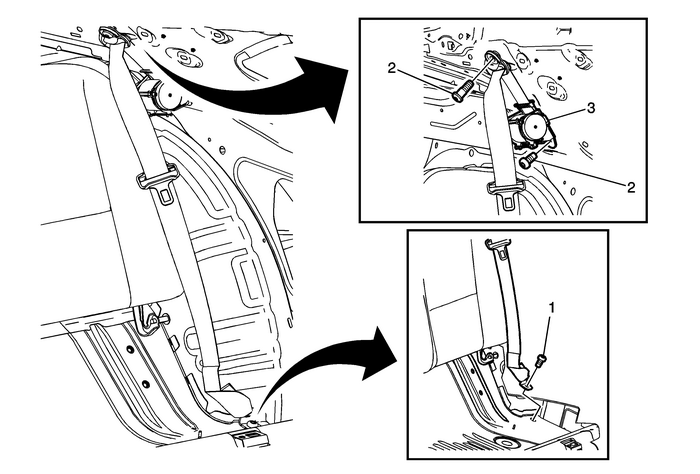

Callout

Component Name

Preliminary ProceduresRemove the quarter window trim finish panel. Refer toQuarter Window Trim Finish Panel Replacement.Remove the body side trim panel. Refer toBody Side Trim Panel Replacement - Left SideandBody Side Trim Panel Replacement - Right Side.

1

Rear Seat Shoulder Belt Anchor Plate Fastener

Caution:Refer toFastener Caution.

Tighten

45-Y(33-lb-ft)

2

Rear Seat Belt Retractor Fastener (Qty:-2)

Tighten

45-Y(33-lb-ft)

3

Rear Seat Retractor Side Belt Assembly
