Rear Seat Outer Recliner Rear Finish Cover Replacement Seats Rear

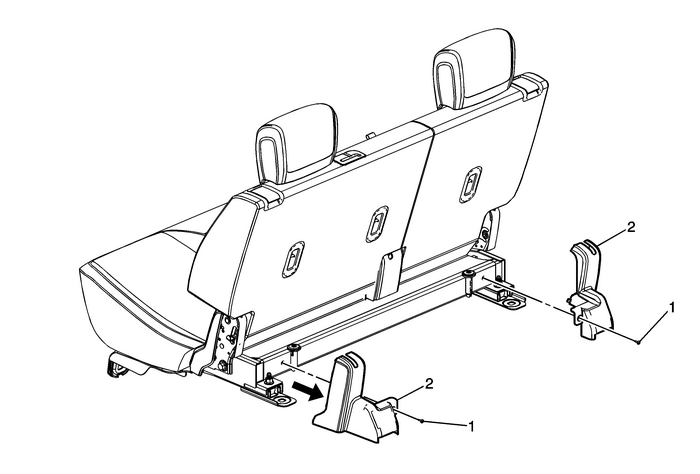

Rear Seat Outer Recliner Rear Finish Cover Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear seat recliner outer finish cover. Refer toRear Seat Recliner Outer Finish Cover Replacement

1

Rear Seat Outer Recliner Rear Finish Cover Fastener

2

Rear Seat Outer Recliner Rear Finish Cover

Procedure

Slide cover up and rearward to disengage retainers.
