Rear Bumper Upper Fascia Replacement Bumpers Rear Bumper

Rear Bumper Upper Fascia Replacement

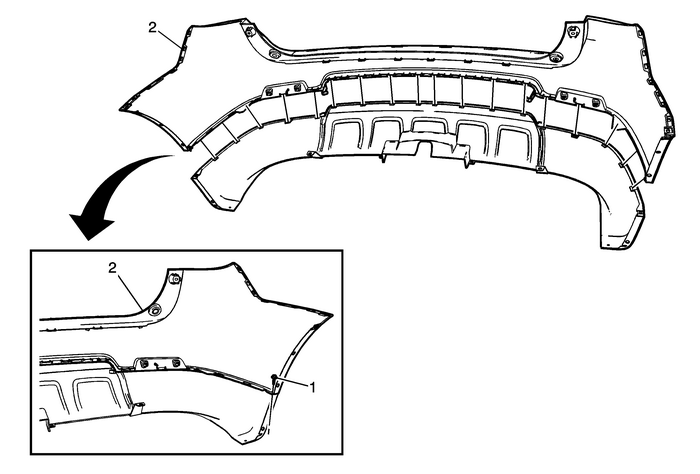

Callout

Component Name

Preliminary Procedure

Remove the rear bumper fascia molding. Refer toRear Bumper Fascia Molding Replacement.

1

Rear Bumper Upper Fascia Screw (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

6-Y(53-lb-in)

2

Rear Bumper Upper Fascia

ProcedureCarefully push a small nylon wedge between the upper fasciaand the lower fascia. Insert a small flat-bladed tool into thefascia slot and depress the snaps one at a time and pull on thefascia at the same time to gradually remove the lower fascia fromthe upper fascia.Transfer parts as necessary.
