Rear Bumper Fascia Molding Replacement Bumpers Rear Bumper

Rear Bumper Fascia Molding Replacement

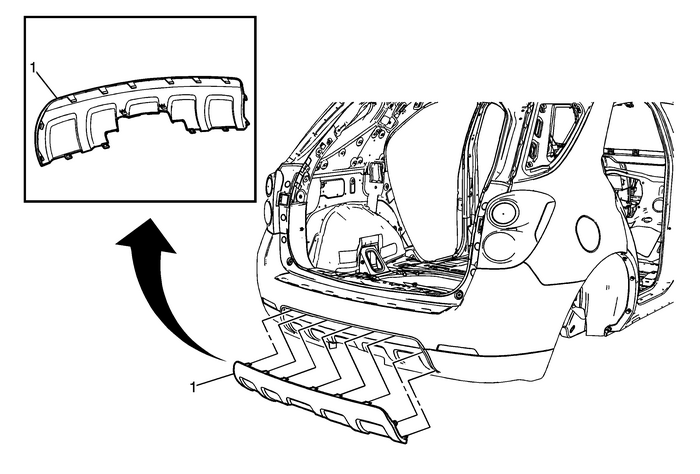

Callout

Component Name

Preliminary Procedure

Remove the rear bumper energy absorber. Refer toRear Bumper Energy Absorber Replacement.

1

Rear Bumper Fascia Molding

Procedure

Carefully push a small nylon wedge between the rear fasciaand the fascia molding. Insert a small flat-bladed tool into thefascia slot and depress the tabs one at a time and pull on thefascia at the same time to gradually remove the fascia molding fromthe rear fascia.
