Rear Bumper Fascia Bracket Replacement - Side (Terrain) Bumpers Rear Bumper

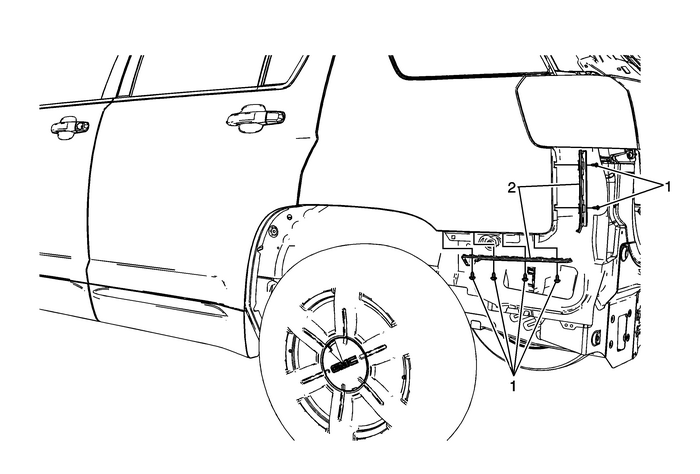

Rear Bumper Fascia Bracket Replacement - Side

Callout

Component Name

Preliminary Procedure

Remove the rear bumper fascia. Refer toRear Bumper Fascia Replacement.

1

Rear Bumper Fascia Bracket Side Bolt(Qty:-6)

Caution:Refer toFastener Caution.

Tighten

2-Y(18-lb-in)

2

Rear Bumper Fascia Bracket Side

Rear Bumper Fascia Bracket Replacement - Side Bumpers Rear Bumper
Rear Bumper Fascia Bracket Replacement - SideCalloutComponent NamePreliminary ProcedureRemove the rear bumper fascia. Refer toRear Bumper Fascia Replacement.1Rear Bumper Fascia Bracket Side Bolt(Qty:- ...
