Rear Axle Vent Replacement Axles Rear

Rear Axle Vent Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear differential assembly from the vehicle. RefertoDifferential Replacement.

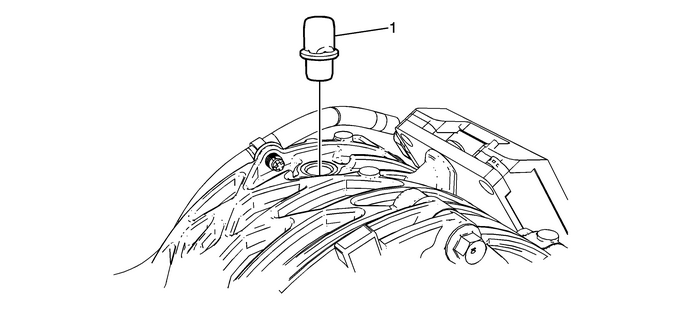

1

Rear Differential Vent

ProcedureRemove any dirt or debris from the vent area.Using an appropriate pair of pliers, remove the vent from therear differential housing.

Tip:

The rear differential does not have to be removed from thejack stand to perform this procedure.When installing the vent, use a deep well socket that fits onthe flange of the vent and gently tap the vent into place.
