Chevrolet Equinox Service Manual: Rear Axle Lower Control Arm Replacement Control Arms Lower Control Arm

Chevrolet Equinox Service Manual / Chassis / Suspension / Rear Axle Lower Control Arm Replacement Control Arms Lower Control Arm

Removal ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the rear tire and wheel assembly. Refer toTire and Wheel Removal and Installation.Remove the stabilizer shaft link. Refer toStabilizer Shaft Link Replacement.Position a jackstand underneath the lower control arm.Raise the jackstand slightly to compress the coil spring.

Rear Axle Lower Control Arm Replacement Control Arms Lower Control Arm

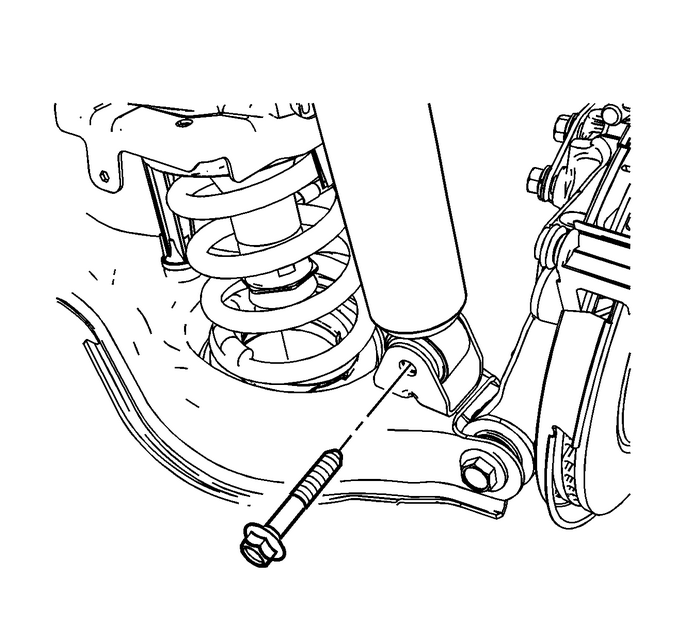

Remove the lower shock bolt and nut.

Rear Axle Lower Control Arm Replacement Control Arms Lower Control Arm

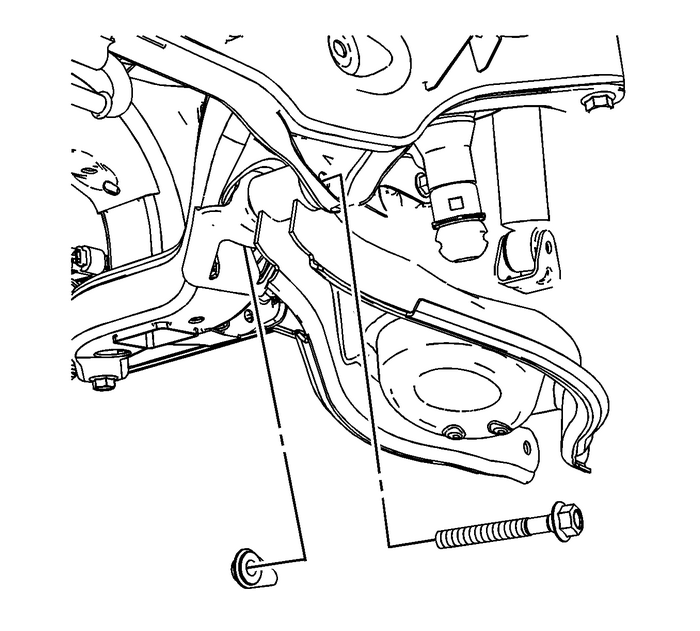

Loosen the lower control arm to support frame nut and bolt.

Rear Axle Lower Control Arm Replacement Control Arms Lower Control Arm

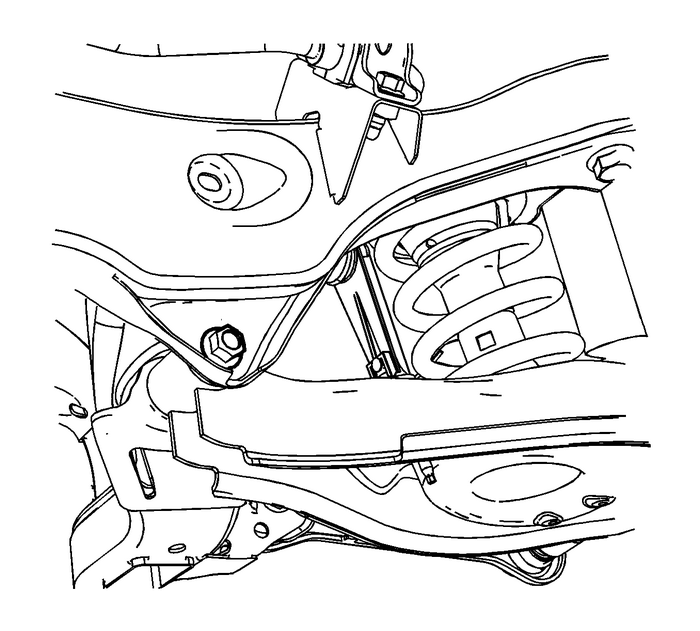

Remove the lower control arm to knuckle nut and bolt.Slowly lower the control arm in order to unload the coil spring.Remove the coil spring.Remove the jackstand.

Rear Axle Lower Control Arm Replacement Control Arms Lower Control Arm

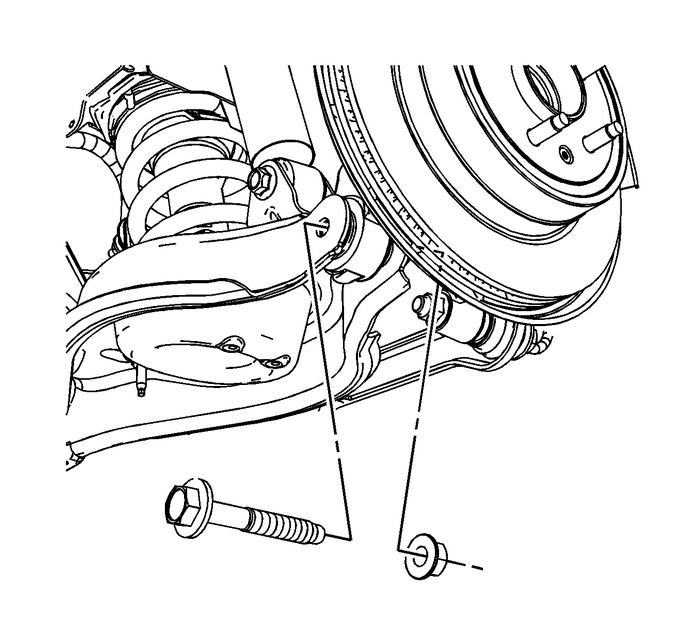

Remove the lower control arm to support frame nut and bolt.Remove the lower control arm.Installation ProcedureInspect the coil spring upper and lower insulators, if damage exists replace the insulators.Refer toRear Spring Insulator Replacement.

Rear Axle Lower Control Arm Replacement Control Arms Lower Control Arm

Position the lower control arm to the support frame and loosely install the nut andbolt.Position the jackstand under the lower control arm.Position the spring with the rubber insulators into the vehicle.Raise the jackstand to compress the spring.

Rear Axle Lower Control Arm Replacement Control Arms Lower Control Arm

Caution:Refer toFastener Caution.

Position the lower control arm to the knuckle and install the nut and bolt and tightento 160-Y (118-lb-ft).

Rear Axle Lower Control Arm Replacement Control Arms Lower Control Arm

Tighten the lower control arm to support nut and bolt to 125-Y (92-lb-ft).

Rear Axle Lower Control Arm Replacement Control Arms Lower Control Arm

Install the shock to the lower control arm nut and bolt and tighten to 110-Y (81-lb-ft).Remove the jackstand from under the vehicle.Install the stabilizer shaft link. Refer toStabilizer Shaft Link Replacement.Install the rear tire and wheel assembly. Refer toTire and Wheel Removal and Installation.Lower the vehicle.Check the rear alignment. Refer toWheel Alignment Measurement.
