Reaction Carrier Hub and 2-6 Clutch Plate Removal Automatic Transmission Unit

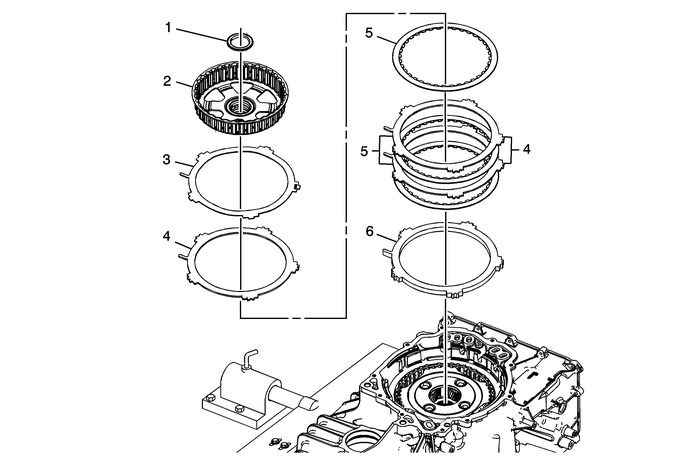

Reaction Carrier Hub and 2-6 Clutch Plate Removal

Callout

Component Name

1

2–6 Clutch Hub Thrust Bearing Assembly

Note:The 2–6 clutch hub thrust bearing assembly may be stuck to the reaction carrier hubassembly.

2

Reaction Sun Gear Assembly

3

2–6 Clutch Cushion Spring

4

2–6 Clutch Plate (Qty: 3)

5

2–6 Clutch (w/Friction Material) Plate Assembly (Qty: 3)

6

2–6 Clutch Backing Plate

Reaction Carrier Cleaning and Inspection Automatic Transmission Unit
Reaction Carrier Cleaning and InspectionCalloutComponent NamePreliminary ProceduresClean and Inspect the carrier as an assembly. If wear ordamage is found disassemble to replace the affectedcomponent. ...
