Chevrolet Equinox Service Manual: Range Selector Lever Cable Bracket Replacement Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Range Selector Lever Cable Bracket Replacement Automatic Transmission Unit

Removal ProcedureSet the park brake and chock the wheels.

Range Selector Lever Cable Bracket Replacement Automatic Transmission Unit

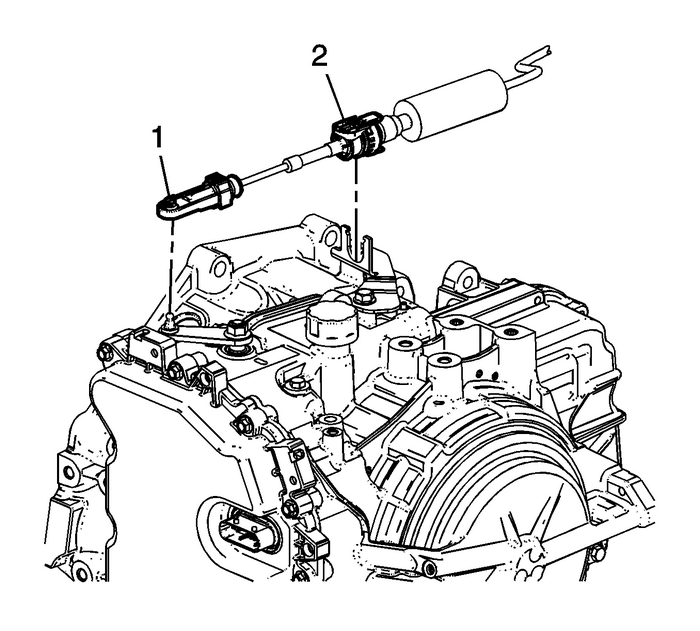

Disconnect the range selector cable end-(1) from the range selector lever.Disconnect the range selector cable-(2) from the range selector cable bracket.

Range Selector Lever Cable Bracket Replacement Automatic Transmission Unit

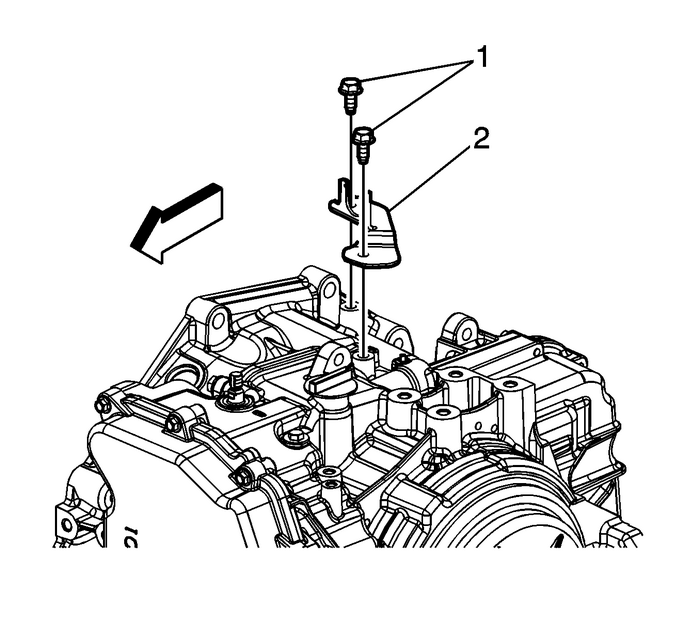

Remove the transmission range selector cable bracket bolts-(1).Remove the transmission range selector cable bracket-(2).Installation Procedure

Range Selector Lever Cable Bracket Replacement Automatic Transmission Unit

Install the transmission range selector cable bracket-(2).

Caution:Refer toFastener Caution.

Install the transmission range selector cable bracket bolts-(1) and tighten to 25-Y (18-lb-ft).

Range Selector Lever Cable Bracket Replacement Automatic Transmission Unit

Connect the range selector cable-(2) to the range selector cable bracket.Connect the range selector cable end-(1) to the range selector lever.Check the range selector cable adjustment. Refer toRange Selector Lever Cable Adjustment.
