Radiator Surge Tank Replacement Engine Cooling Radiator

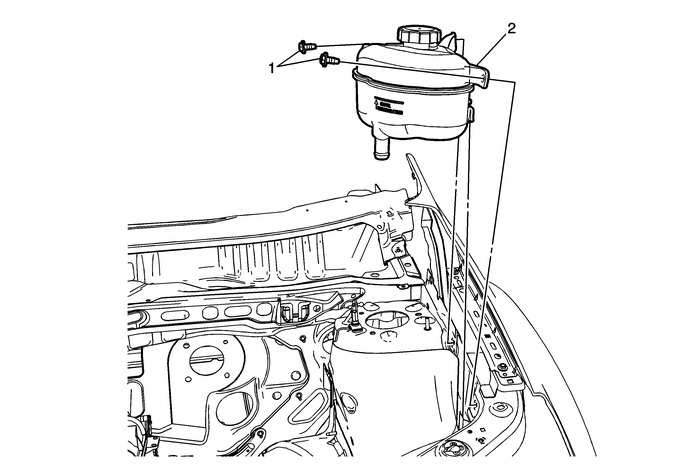

Radiator Surge Tank Replacement

Callout

Component Name

Preliminary ProceduresDrain the coolant. Refer toCooling System Draining and Filling.Remove the coolant recovery reservoir vent hose. Refer toCoolant Recovery Reservoir Vent Hose Replacement.Remove the coolant recovery reservoir outlet hose. Refer toCoolant Recovery Reservoir Outlet Hose Replacement.

1

Radiator Surge Tank Bolt (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

9-Y(80-lb-in)

2

Radiator Surge Tank
