Radiator Air Lower Baffle and Deflector Replacement Engine Cooling Radiator

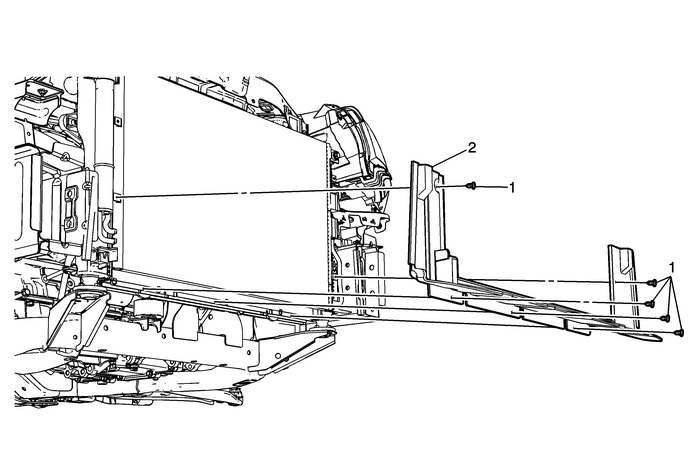

Radiator Air Lower Baffle and Deflector Replacement

Callout

Component Name

Preliminary ProceduresRemove the front bumper fascia. Refer toFront Bumper Fascia ReplacementRemove radiator air upper baffel and deflector. Refer toRadiator Air Upper Baffle and Deflector Replacement

1

Radiator Air Lower Baffel And Deflector Retainers(Qty-5)

2

Radiator Air Lower Baffel And Deflector
