Primary Camshaft Intermediate Drive Chain Tensioner Removal Valvetrain Camshaft

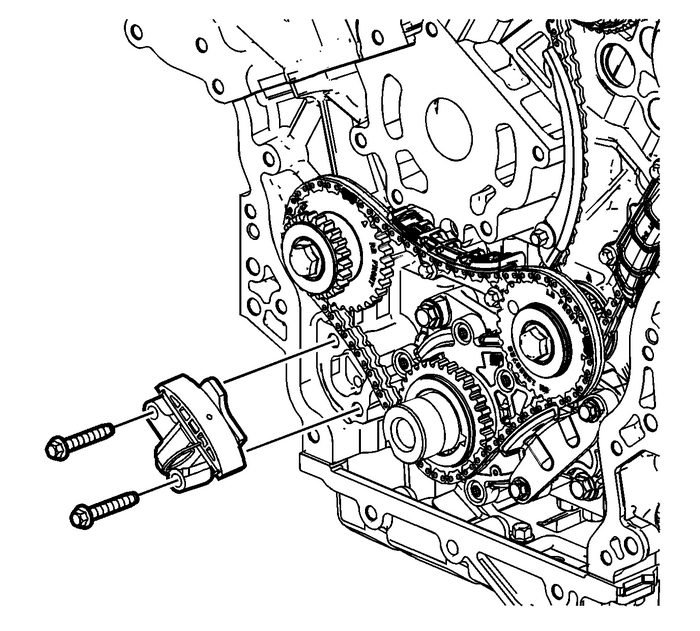

Remove the primary camshaft drive chain tensionerbolts.Remove the primary camshaft drive chain tensioner.

Primary Camshaft Intermediate Drive Chain Tensioner Removal Valvetrain Camshaft

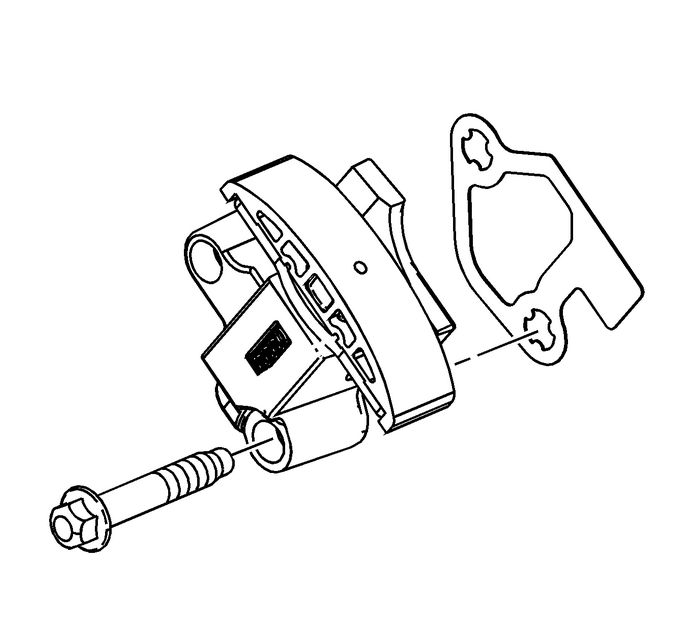

Remove and discard the primary camshaft drive chain tensionergasket.Inspect the primary camshaft drive chain tensioner mountingsurface on the engine block for burrs or any defects that woulddegrade the sealing of the NEW primary camshaft drive chaintensioner gasket.

Primary Timing Chain Guide Removal - Lower Valvetrain Valvetrain Timing Timing Belt/Chain
Remove the primary camshaft drive chain lower guidebolts.Remove the primary camshaft drive chain lower guide. ...

Primary Timing Chain Guide Removal - Upper Valvetrain Valvetrain Timing Timing Belt/Chain
Remove the primary camshaft drive chain upper guidebolts.Remove the primary camshaft drive chain upper guides. ...
