Chevrolet Equinox Service Manual: Piston and Connecting Rod Disassemble Engine Block Cylinder Block Piston Assembly

Chevrolet Equinox Service Manual / Powertrain / Engine / Piston and Connecting Rod Disassemble Engine Block Cylinder Block Piston Assembly

Special Tools

EN-46745Piston Pin Clip Remover/Installer

For equivalent regional tools, refer toSpecial Tools.

Piston and Connecting Rod Disassemble Engine Block Cylinder Block Piston Assembly

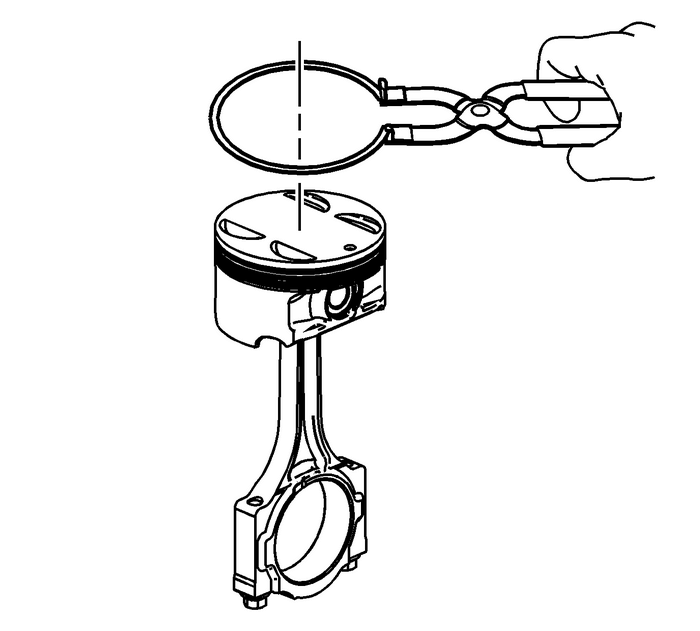

Caution:You must use a piston ring expander to remove and install thepiston rings. Only expand the rings far enough to fit over thepiston lands. If the rings are overexpanded, the top ring willshatter and the others will distort.

Remove the piston rings using a piston ring expander. Placeeach ring in a clean shop towel for storage.

Piston and Connecting Rod Disassemble Engine Block Cylinder Block Piston Assembly

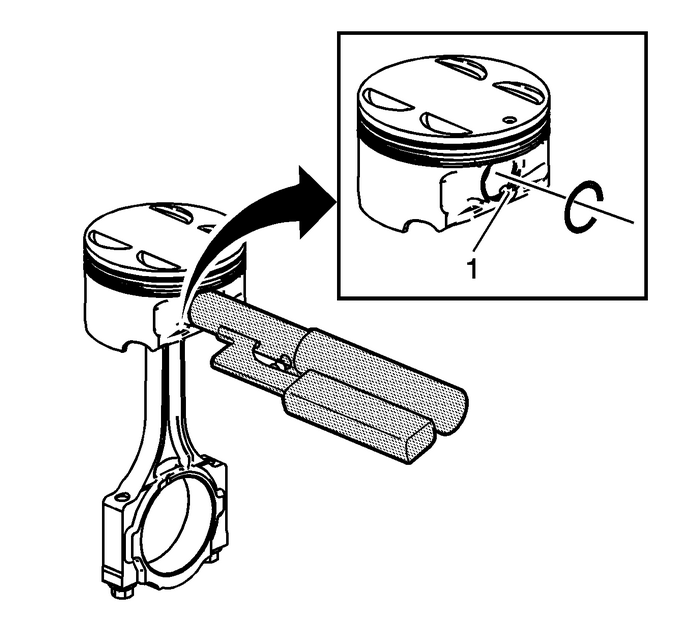

Note:

The connecting rod is non-directional and may beassembled/reassembled to the piston in either direction.DO NOT reuse the piston pin retainers.Using theEN-46745remover/installer, remove the piston pin retainers by using the removalaccess notch-(1) in the side of the piston. Discard thepiston pin retainers.

Piston and Connecting Rod Disassemble Engine Block Cylinder Block Piston Assembly

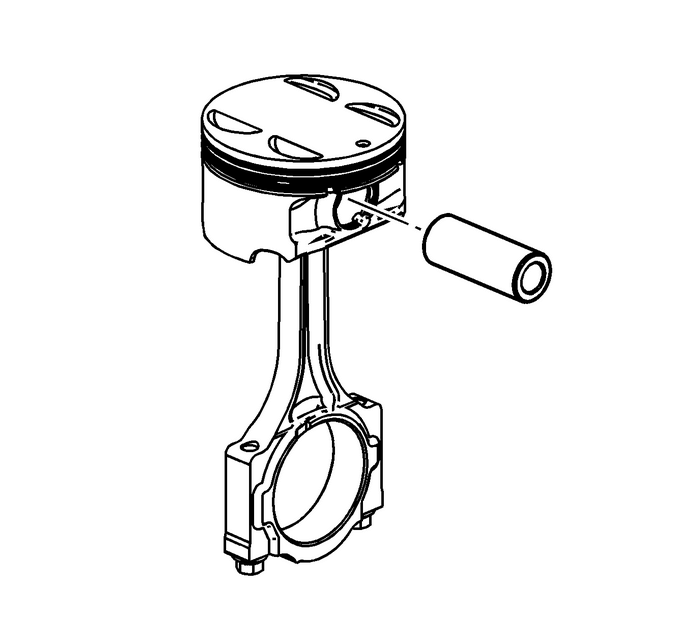

Slide the piston pin out of the piston. The piston willdisconnect from the connecting rod.

Piston, Connecting Rod, and Bearing Removal Engine Block Cylinder Block Piston Assembly
Special ToolsEN 46121Connecting Rod Guide Pin SetFor equivalent regional tools, refer toSpecial Tools.Note:An arrow/dot showing proper piston orientation is located onthe top of the piston.If the conn ...

Piston and Connecting Rod Assemble Engine Block Cylinder Block Piston Assembly
Special ToolsEN-46745Piston Pin Retainer Remover andInstallerFor equivalent regional tools, refer toSpecial Tools.Note:Install the piston onto the connecting rod with the arrow ontop of the piston tow ...
