Chevrolet Equinox Service Manual: Oil Pump Suction Pipe and Screen Assembly Replacement Engine Lubrication Oil Pump

Chevrolet Equinox Service Manual / Powertrain / Engine / Oil Pump Suction Pipe and Screen Assembly Replacement Engine Lubrication Oil Pump

Removal ProcedureRemove the oil pan. Refer toOil Pan Replacement.

Oil Pump Suction Pipe and Screen Assembly Replacement Engine Lubrication Oil Pump

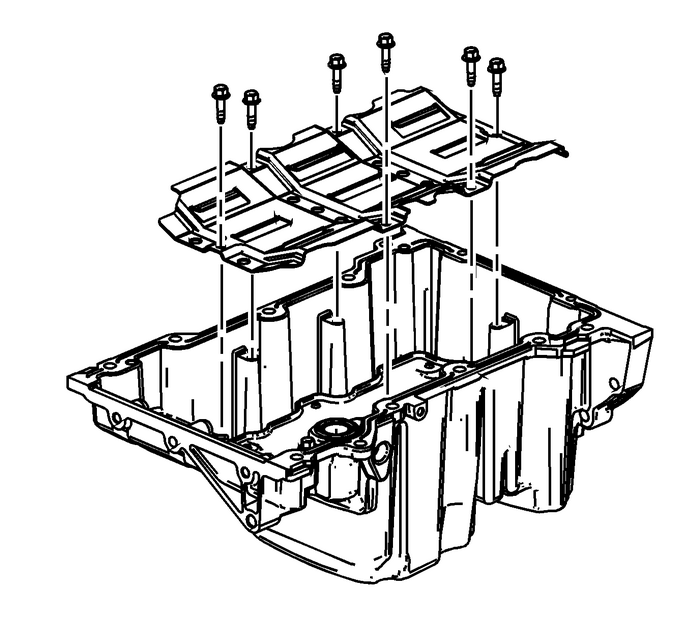

Remove the oil pan scraper bolts.Remove the oil pan scraper.

Oil Pump Suction Pipe and Screen Assembly Replacement Engine Lubrication Oil Pump

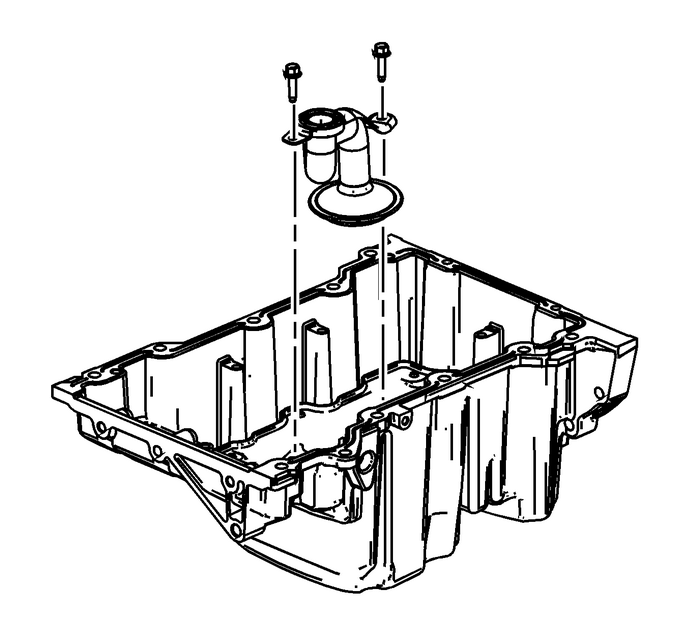

Remove the oil suction pipe bolts.Remove the oil suction pipe.

Oil Pump Suction Pipe and Screen Assembly Replacement Engine Lubrication Oil Pump

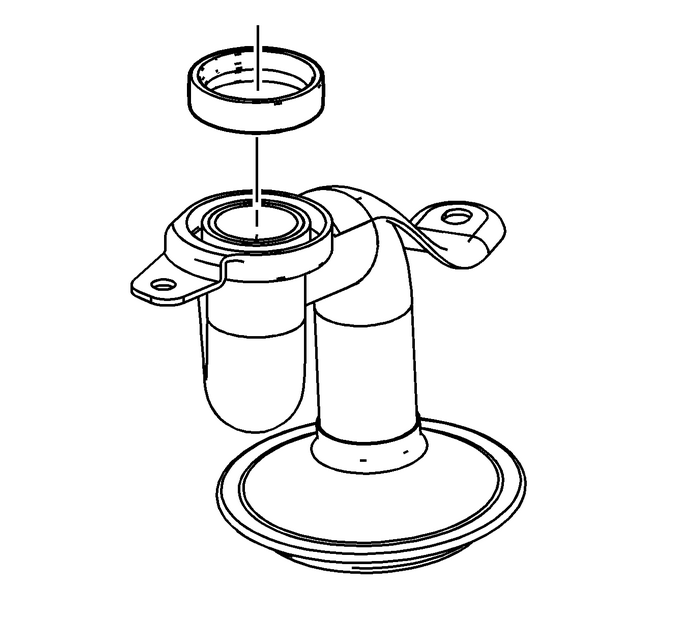

Remove the oil suction tube seal from the oil suction tube.Discard the oil suction tube seal.Installation Procedure

Oil Pump Suction Pipe and Screen Assembly Replacement Engine Lubrication Oil Pump

Install a NEW oil suction tube seal onto the oil suctiontube. DO NOT reuse the old oil suction tube seal.

Oil Pump Suction Pipe and Screen Assembly Replacement Engine Lubrication Oil Pump

Install the oil suction pipe.

Caution:Refer toFastener Caution.

Install the oil suction pipe bolts and tighten to10-Y(89-lb-in).

Oil Pump Suction Pipe and Screen Assembly Replacement Engine Lubrication Oil Pump

Install the oil pan scraper.Install the oil pan scraper bolts and tighten to10-Y(89-lb-in).Install the oil pan. Refer toOil Pan Replacement.
