Chevrolet Equinox Service Manual: Oil Pan Replacement Engine Lubrication Oil Sump/Pan

Chevrolet Equinox Service Manual / Powertrain / Engine / Oil Pan Replacement Engine Lubrication Oil Sump/Pan

Special Tools

EN-46109 Guide Pin Set

For equivalent regional tools, refer toSpecial Tools.

Removal ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Drain the engine oil and remove the oil filter. Refer toEngine Oil and Oil Filter Replacement.Remove the catalytic converter. Refer toCatalytic Converter Replacement - Left Side.Remove the air conditioning (A/C) compressor bolts and reposition. DO NOT dischargethe A/C system. Support the A/C compressor. Refer toAir Conditioning Compressor Replacement.Remove the front cover. Refer toEngine Front Cover Replacement.Remove the oil pan to transmission bolts.

Oil Pan Replacement Engine Lubrication Oil Sump/Pan

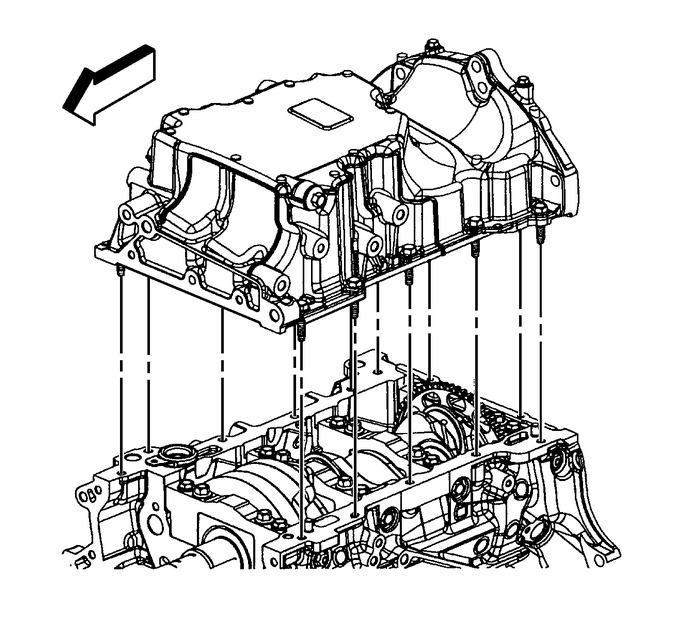

Remove the oil pan bolts.Remove the oil pan.Clean the oil pan and the engine block gasket surface. Refer toOil Pan Cleaning and Inspection.Installation Procedure

Oil Pan Replacement Engine Lubrication Oil Sump/Pan

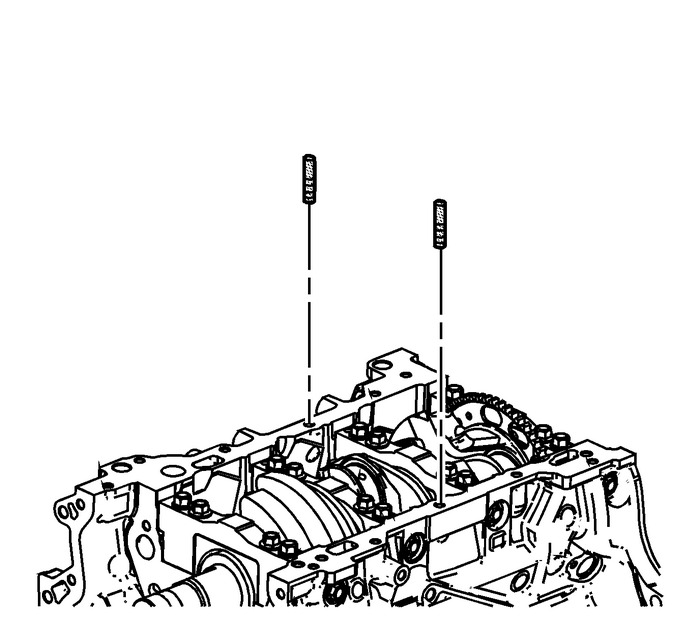

Install the 8-mm (0.315-in) guides from the EN-46109 setinto the center oil pan rail bolt hole on each side of the engine block.

Oil Pan Replacement Engine Lubrication Oil Sump/Pan

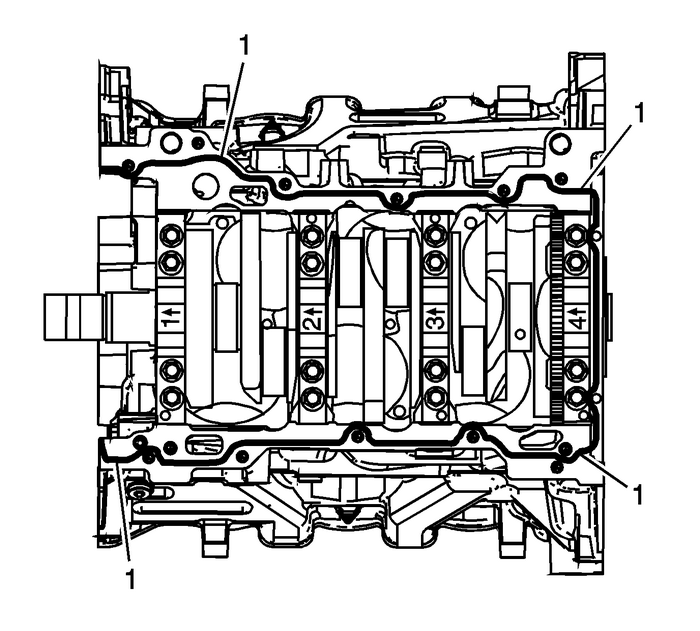

Place a 3-mm (0.118-in) bead-(1) of RTV sealant , on the block pan rail and the crankshaftrear oil seal housing.

Oil Pan Replacement Engine Lubrication Oil Sump/Pan

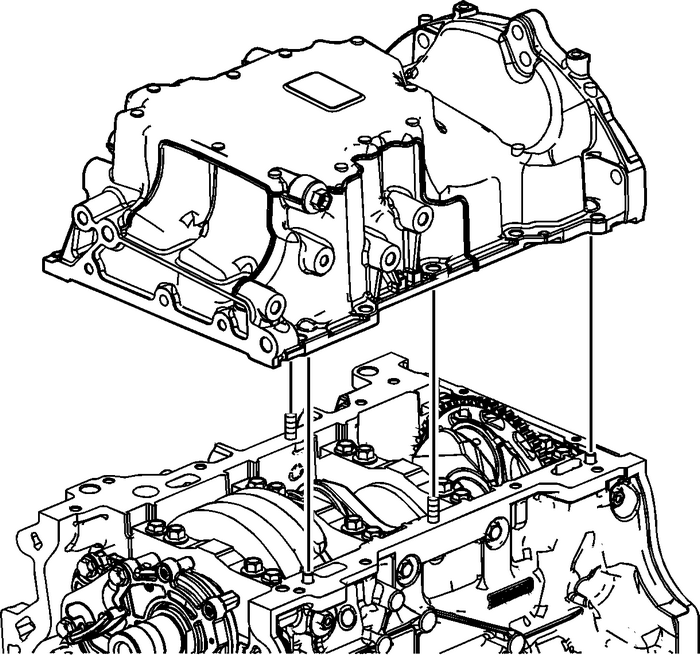

Position the oil pan onto the block.

Oil Pan Replacement Engine Lubrication Oil Sump/Pan

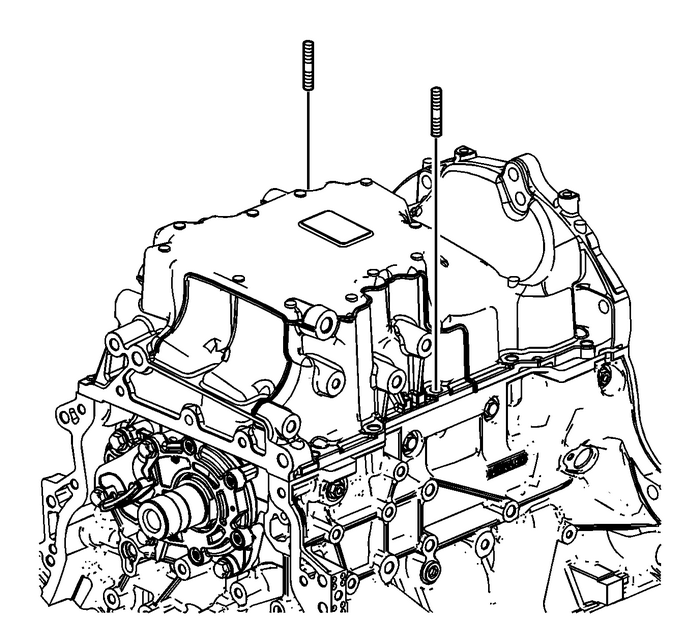

Remove the EN-46109 set8-mm (0.315-in) guides from the engine block.

Oil Pan Replacement Engine Lubrication Oil Sump/Pan

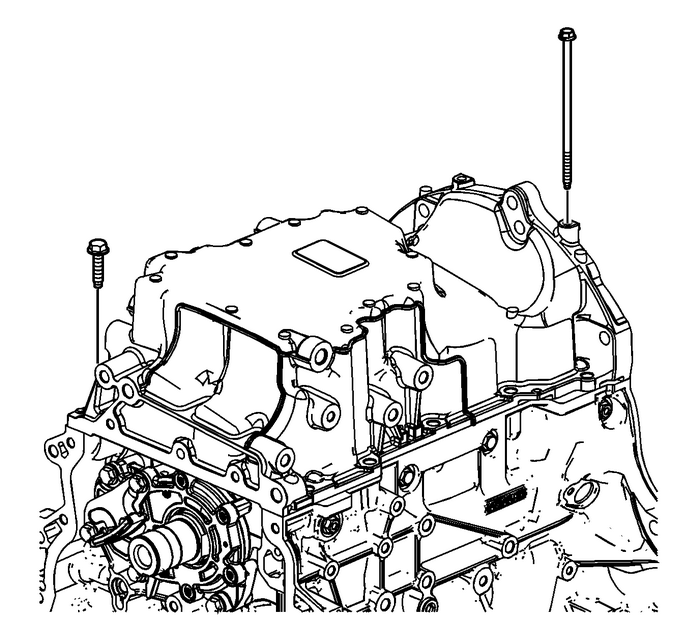

Loosely install the oil pan bolts.

Oil Pan Replacement Engine Lubrication Oil Sump/Pan

Caution:Refer toFastener Caution.

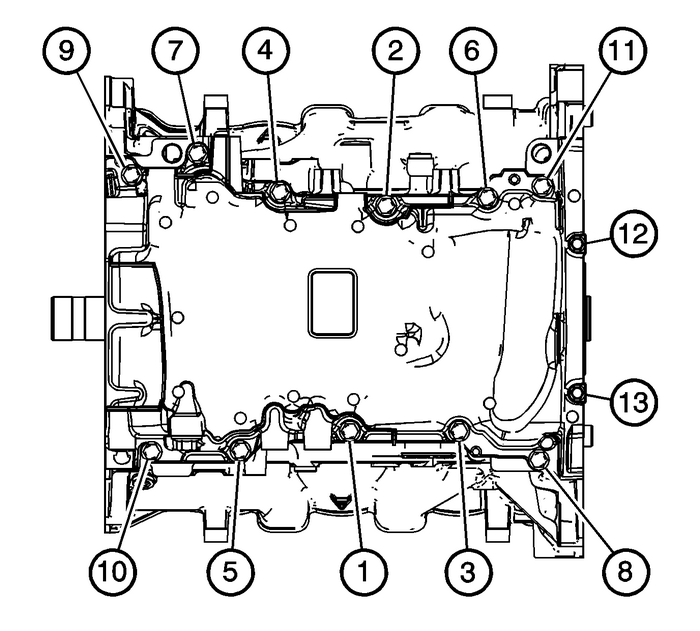

Tighten the oil pan bolts in sequence.The 8-mm bolts-(1–11) to 25-Y (18-lb-ft).The 6-mm bolts-(12, 13) to 10-Y (89-lb-in).Install engine front cover. Refer toEngine Front Cover Replacement.Reposition the air conditioning (A/C) compressor and install the bolts. Refer toAir Conditioning Compressor Replacement.Install the catalytic converter. Refer toCatalytic Converter Replacement - Left Side.Lower the vehicle. Refer toLifting and Jacking the Vehicle.Refill the engine oil. Refer toEngine Oil and Oil Filter Replacement.
