Chevrolet Equinox Service Manual: Oil Pan Assemble Engine Lubrication Oil Sump/Pan

Chevrolet Equinox Service Manual / Powertrain / Engine / Oil Pan Assemble Engine Lubrication Oil Sump/Pan

Caution:Refer toFastener Caution.

Oil Pan Assemble Engine Lubrication Oil Sump/Pan

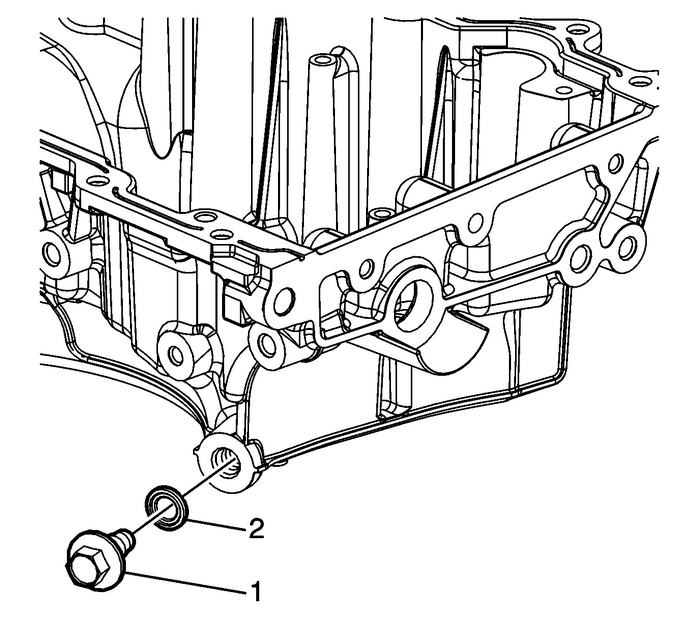

Install the oil pan drain plug-(1) and NEW O-ring seal-(2) and tighten to 25-Y (18-lb-ft).

Oil Pan Assemble Engine Lubrication Oil Sump/Pan

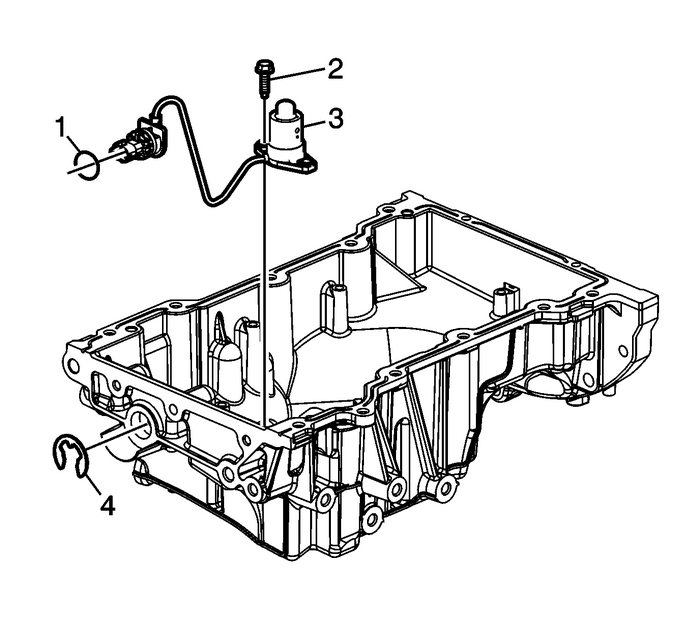

Install the NEW engine oil level switch seal-(1).Install the engine oil level switch-(3).Install the engine oil level switch bolts-(2) and tighten to 10-Y (89-lb-in).Install NEW engine oil level switch clip-(4).

Oil Pan Assemble Engine Lubrication Oil Sump/Pan

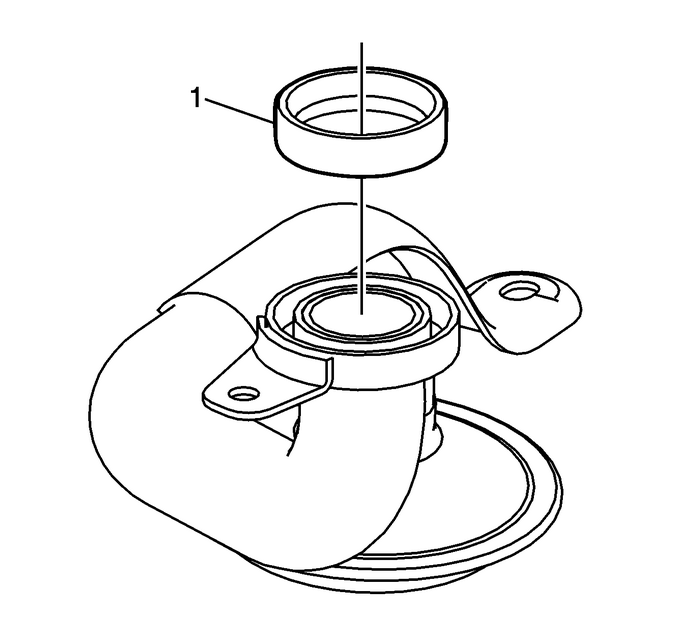

Install the NEW oil suction pipe seal-(1).

Oil Pan Assemble Engine Lubrication Oil Sump/Pan

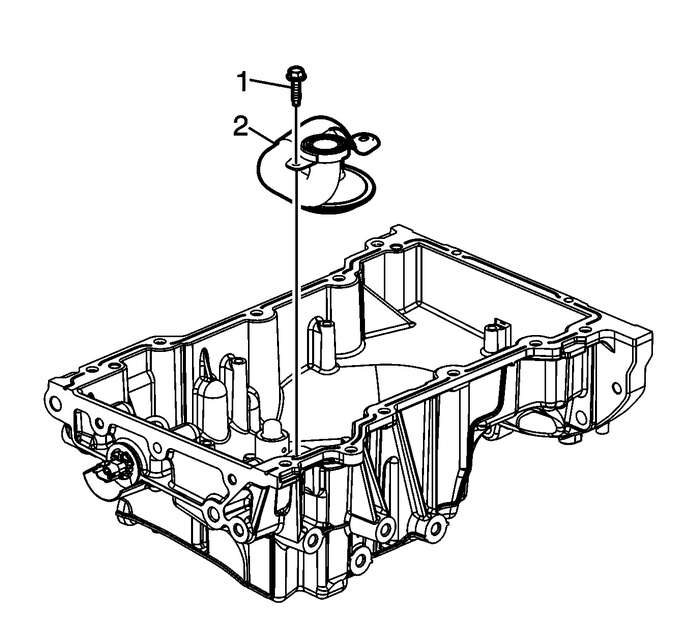

Install the oil suction pipe-(2).Install the oil suction pipe bolts-(1) and tighten to 10-Y (89-lb-in).

Oil Pan Assemble Engine Lubrication Oil Sump/Pan

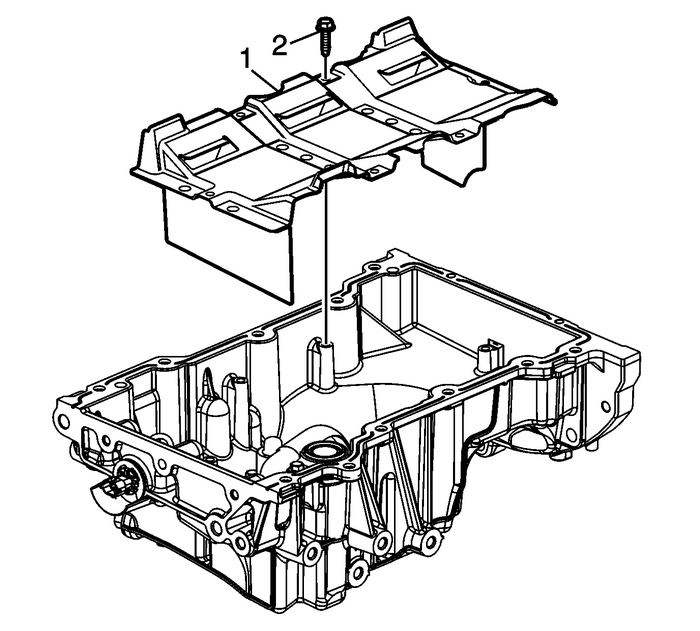

Install the oil pan scraper-(1).Install the oil pan scraper bolts-(2) and tighten to 10-Y (89-lb-in).

Oil Filter Adapter Assemble Engine Lubrication Oil Filter
Caution:Refer toFastener Caution.Install the oil filter fitting and tighten to50-Y(37-lb-ft).Install the oil pressure sender and tighten to20-Y(15-lb-ft). ...

Water Pump and Balance Shaft Chain and Tensioner Installation Engine Block Cylinder Block Balance Shaft
Caution:Refer toFastener Caution.Note:If the balance shafts are not properly timed to the engine,the engine may vibrate and make noise.Install the upper balance shaft chain guide-(1)and bolts and tigh ...
