Oil Level Indicator Tube Replacement Engine Lubrication Oil Level Indicator Tube

Oil Level Indicator Tube Replacement

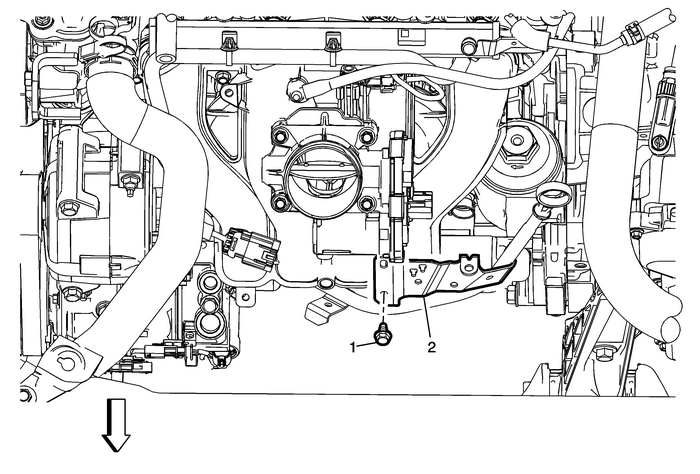

Callout

Component Name

Preliminary Procedure

Remove the air cleaner outlet duct. Refer toAir Cleaner Outlet Resonator Replacement.

1

Oil Level Indicator Tube Bolt

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

2

Oil Level Indicator Tube

ProcedureTransfer over the oil level indicator.Install NEW oil level indicator tube O-ring seals.Disconnect electrical connector
Lubrication Description
Oil is applied under pressure to the crankshaft-(1), connecting rods, balance shaftassembly, camshaft bearing surfaces, valve lash adjusters and timing chain hydraulictensioner. All other moving parts ...
