Oil Level Indicator and Tube Removal (LAF, LEA, or LUK) Engine Lubrication Oil Level Indicator Tube

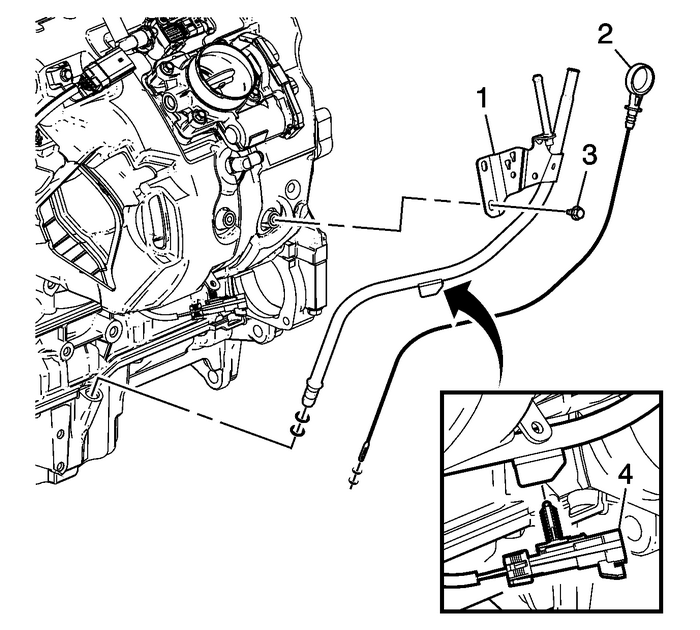

Remove knock sensor connector-(4) from the oillevel indicator tube.Remove the electrical wiring harness from the oil levelindicator tube.Remove the oil level indicator tube bracketbolt-(3).Remove the oil level indicator-(2) and the oillevel indicator tube-(1) from the oil pan.Inspect the O-ring and replace if necessary.

Oil Filter Adapter Removal Engine Lubrication Oil Filter
Remove and properly dispose of the oil filter.Remove the oil filter adapter bolts from the engineblock.Remove the oil filter adapter.Remove and discard the oil filter adapter gasket. ...

Engine Front Cover and Oil Pump Removal Engine Block Cylinder Block Cyl Block Front Cover
Remove the accessory drive belt tensioner bolt.Remove the accessory drive belttensioner-(1).Remove the engine front cover bolts-(1).Remove the long water pump bolt.Remove the engine front cover-(1) an ...
