Chevrolet Equinox Service Manual: Oil Filter with Cap and Seal Installation Engine Lubrication Oil Filter

Chevrolet Equinox Service Manual / Powertrain / Engine / Oil Filter with Cap and Seal Installation Engine Lubrication Oil Filter

Special Tools

EN-44887 Oil Filter Wrench

For equivalent regional tools, refer toSpecial Tools.

Oil Filter with Cap and Seal Installation Engine Lubrication Oil Filter

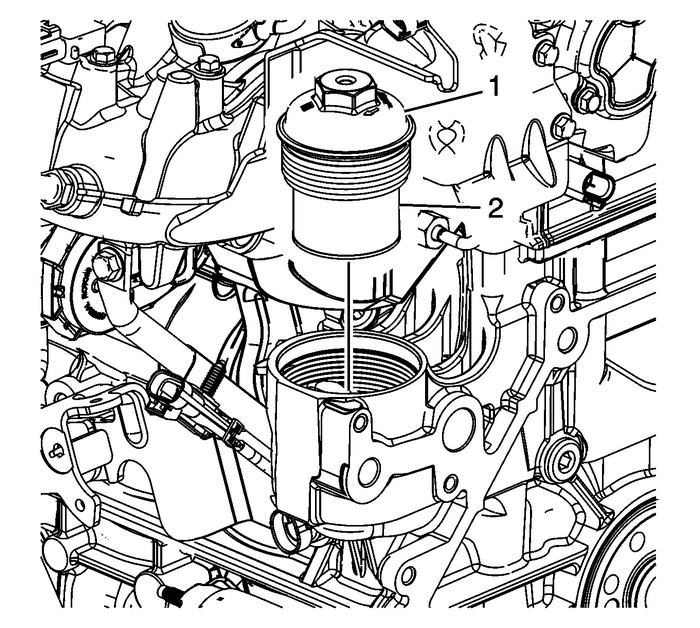

Install a new oil filter-(2) on the oil filter cap-(1).Lubricate the O-ring on the oil filter cap with 5W30 engine oil.

Caution:Refer toFastener Caution.

Use EN-44887 wrench to install the oil filter cap. Tighten the oil filter cap to 25-Y (18-lb-ft).
