Oil Filter Adapter Replacement Engine Lubrication Oil Filter

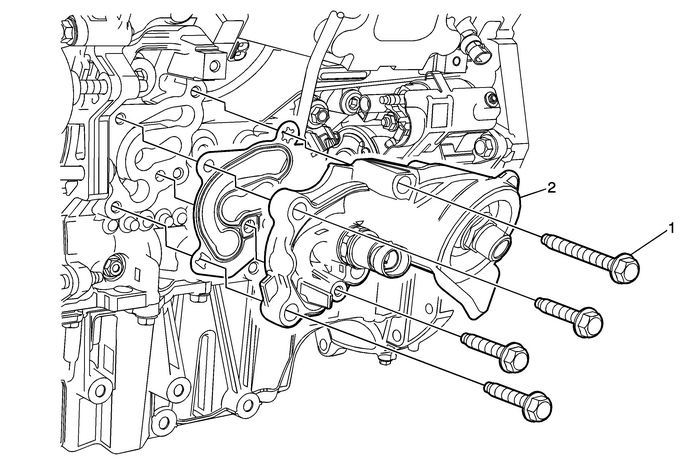

Oil Filter Adapter Replacement

Callout

Component Name

Preliminary ProceduresRemove the generator. Refer toGenerator Replacement.Remove the oil filter. Refer toEngine Oil and Oil Filter Replacement.

1

Oil Filter Adapter Fastener (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

25-Y(18-lb-ft)

2

Oil Filter Adapter

ProcedureReplace oil filter adapter gasket.Disconnect electrical connector as needed.Transfer components as necessary.
