Chevrolet Equinox Service Manual: New Product Information Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / New Product Information Automatic Transmission Unit

The purpose of New Product Information is to document, important product changes whichoccur either model year-to-model year or interim model year.

Changes may include one or more of the following items:

Specification changesNew sealants and/or adhesivesDisassembly and assembly procedure revisionsMechanical and diagnostic procedure revisionsNew special tools requiredInterim model year design changesA component comparison from the previous model year2008 Mid-Model Intermediate Drive Shaft (IDS) Seal Update

The IDS seal design was updated in the mid-model year 2008 Getrag 760/790 TransferCases.

Replacing the IDS seal with the correct seal requires identification between firstand second design transfer cases. Refer to the table below.

Seal Design Usage

First Design

Second Design

Transfer Case P/N

24244573

24246665

Original IDS Seal P/N

19132951 / 19178698

19206322

Original Seal Color

Yellow or Blue

Green

Replacement Service Seal

19180998

19206322

Service Seal Color

Green

Green

VIN Breakpoint: Chevrolet, Pontiac – 12/20/2007

2CNDL037686075818

VIN Breakpoint: Saturn – 1/2/2008

3GSDL43N58S631116

IDS Seal Identification

New Product Information Automatic Transmission Unit

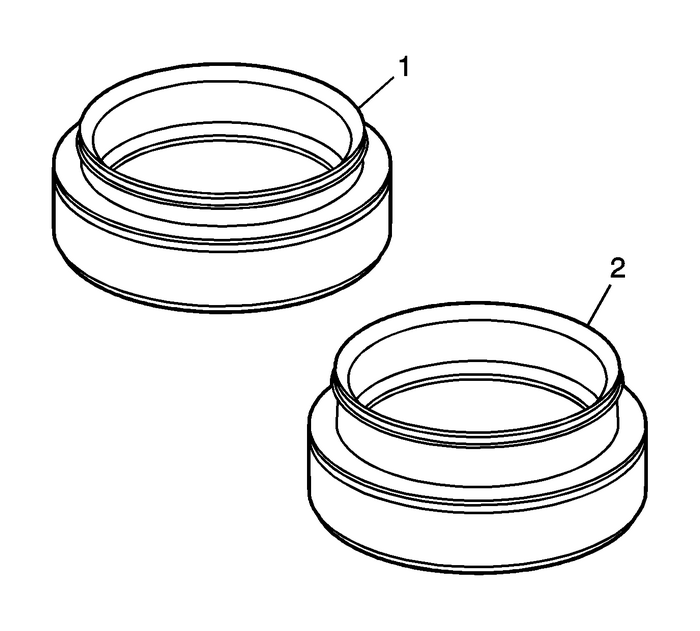

First design, pre-breakpoint seals were built with IDS seals that have yellow or blueshaft guides and are replaced with unique, short neck seals-(1) with a green shaftguide.

Second design, post-breakpoint seals were built with IDS seals that have green shaftguides-(1) and are serviced with unique, long neck seals-(2) with green shaft guides.

Seal Design

Second design IDS seals have sealing lips extended about 5-mm (0.20-in) from the firstdesign sealing location.

Second design IDS seals are not compatible with first design transfer cases. Installinga second design seal in a first design transfer case will create a transmission fluidleak due to interference with the input shaft.

Seal Installation

New Product Information Automatic Transmission Unit

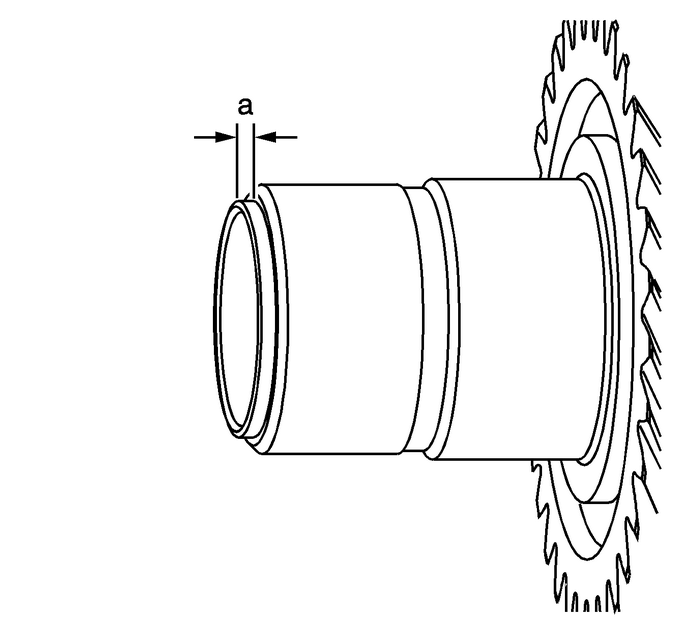

Installing the replacement seal to the proper depth is critical. Use DT-48078 inner drive shaft seal installer with J-8092 driver handle to install the seal 2.8-mm (0.11-in)-(a) from the end of the input shaft. Refer toFront Drive Axle Inner Shaft Seal Replacement.
