Mode Valve Actuator Replacement

Mode Valve Actuator Replacement

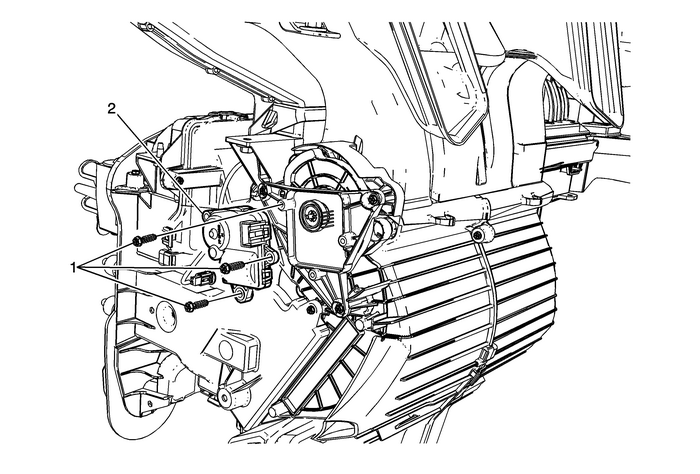

Callout

Component Name

Preliminary ProceduresRemove instrument panel insulator panel – leftside. Refer toInstrument Panel Insulator Panel Replacement - Left Side.Reposition any wiring or hoses to gain access to mode controlcam actuator.

1

Mode Control Cam Actuator Screw (Qty:-3)

Caution:Refer toFastener Caution.

Tighten

2.0-Y(18-lb-in)

2

Mode Control Cam Actuator

ProcedureDisconnect wiring connector at actuator.Calibrate the mode control cam actuator. Refer toActuator Recalibration.
Mode Valve Actuator Replacement
Mode Valve Actuator ReplacementCalloutComponent NamePreliminary ProceduresRemove instrument panel insulator panel – leftside. Refer toInstrument Panel Insulator Panel Replacement - Left Side.Remove ...
