Low and Reverse Clutch Assembly and Low and Reverse Clutch Plate Installation Automatic Transmission Unit Automatic Clutches

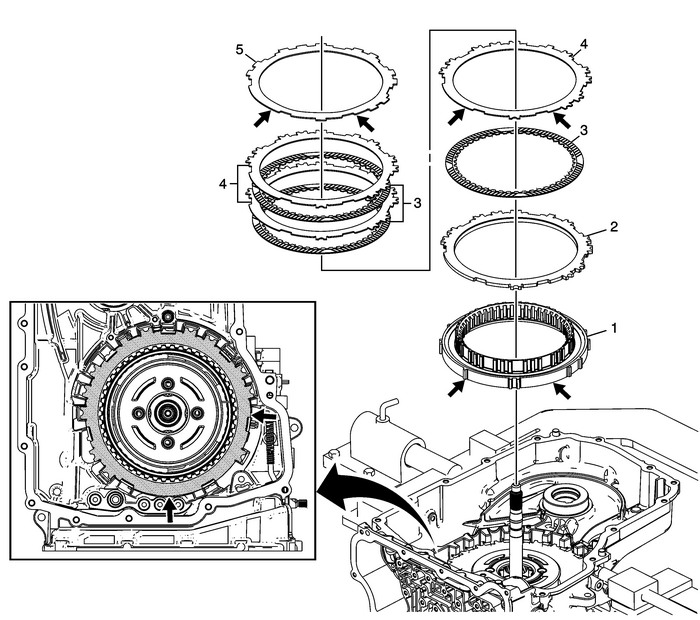

Low and Reverse Clutch Assembly and Low and Reverse Clutch Plate Installation

Callout

Component Name

1

Low and Reverse Clutch Assembly-(OWC)

Note:

The Low and Reverse Clutch Assembly should rotate freely in one direction and lockin the opposite direction.With the valve body face at the 6 o’clock position, align the large flat areas ofthe low and reverse clutch assembly between the 2 o’clock and 5 o’clock position.

2

Low and Reverse Clutch Backing Plate

3

Low and Reverse Clutch Plate Assembly-(Qty:-3)

4

Low and Reverse Clutch Plate-(Qty:-3)

Note:With the valve body face at the 6 o’clock position, align the large flat areas ofthe low and reverse clutch plate between the 2 o’clock and 5 o’clock position.

5

Low and Reverse Clutch Apply (Waved) Plate

Note:

With the valve body face at the 6 o’clock position, align the large flat areas ofthe low and reverse clutch apply plate between the 2 o’clock and 5 o’clock position.Ensure the correct waved plate is being installed. The 1–2–3–4 clutch and low andreverse clutch waved plates are visually similar, however the low and reverse clutchwaved plate is thicker.
