Instrument Panel Upper Trim Panel Replacement (Terrain) Consoles Center Console

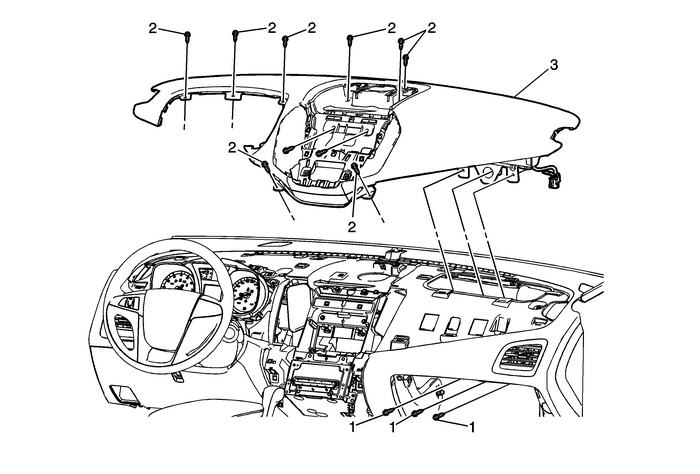

Instrument Panel Upper Trim Panel Replacement

Callout

Component Name

Preliminary ProceduresDisable the SIR system. Refer toSIR Disabling and Enabling.Remove the left and right side window defroster outlet grilleassemblies. Refer toSide Window Defogger Outlet Grille ReplacementRemove the instrument panel accessory trim plate. Refer toInstrument Panel Accessory Trim Plate ReplacementRemove the instrument panel cluster trim plate bezel. RefertoInstrument Panel Cluster Trim Plate Bezel Replacement.Remove the left and right instrument panel side trim panels.Refer toInstrument Panel Side Trim Panel Replacement.Remove the instrument panel compartment door assembly. RefertoInstrument Panel Compartment Door Replacement.Remove the instrument panel center compartment, if equipped.Refer toInstrument Panel Center Compartment ReplacementRemove the radio front center speaker. Refer toRadio Front Center Speaker Replacement.Remove the radio control assembly. Refer toRadio Control Assembly Replacement.Remove the right and left instrument panel center airoutlets. Refer toInstrument Panel Center Air Outlet Replacement.Remove the instrument panel lower extension accessory bezel.Refer toInstrument Panel Lower Extension Accessory Bezel Replacement.Remove the radio, video, audio disc player, and navigationalinformation display, if equipped. Refer toRadio, Video, and Audio Player and Navigation Information Display Replacement.Remove the instrument panel center compartment bracket, ifequipped. Refer toInstrument Panel Center Compartment Bracket Replacement.

1

Instrument Panel Inflatable Restraint Fasteners(Qty:-3)

Caution:Refer toFastener Caution.

Tighten

9-Y(80-lb-in)

2

Instrument Panel Upper Trim Panel Screws(Qty:-10)

Tighten

2.5-Y(22-lb-in)

3

Instrument Panel Upper Trim Panel Assembly

ProceduresNote location and routing of the instrument panel wiringharness prior to removing the instrument panel upper trim panel toensure proper reinstallation.When replacing the instrument panel upper trim panelassembly, transfer all necessary components.
