Instrument Panel Upper Center Trim Panel Replacement (Terrain) Consoles Center Console

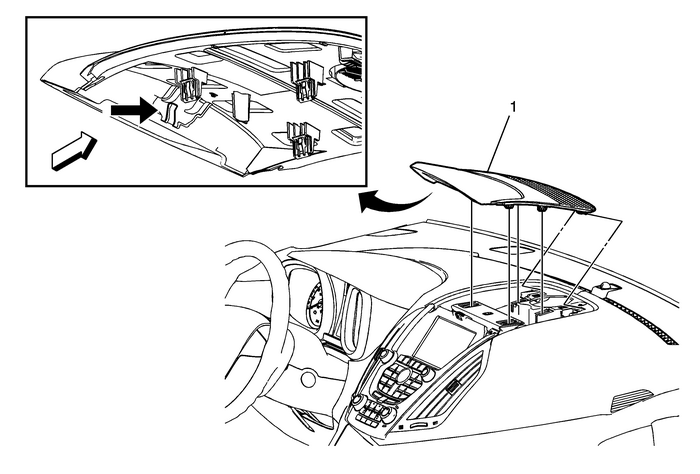

Instrument Panel Upper Center Trim Panel Replacement

Callout

Component Name

1

Instrument Panel Upper Center Trim Panel Assembly

ProcedureApply firm inward pressure at the top center of the radiocontrol assembly, while at the same time applying upward pressureon the instrument panel upper center trim panel, releasing theretainer tab secure the upper center trim panel to the radiocontrol assembly.Continue applying upward pressure and use a flat bladedplastic trim tool in order to release the retainer clips securingthe instrument panel center trim panel to the instrument panelassembly
