Inside Air Moisture and Windshield Temperature Sensor Replacement Windshield

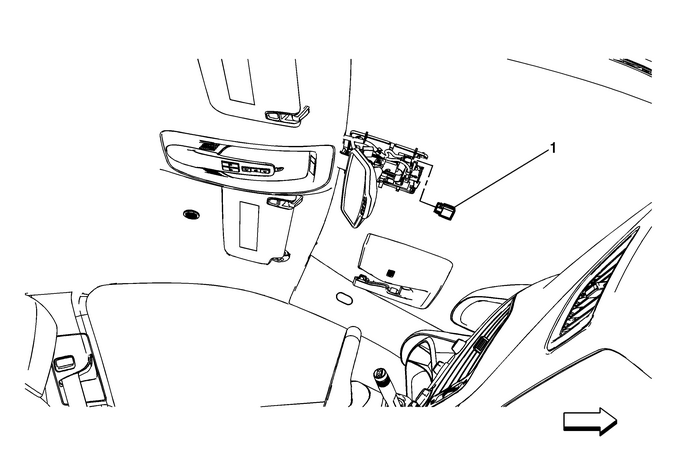

Inside Air Moisture and Windshield Temperature Sensor Replacement

Callout

Component Name

1

Inside Air Moisture And Windshield Temperature Sensor

ProceduresRemove the inside rear view mirror cover.Unlatch the inside air moisture and windshield temperature sensor, from the insiderear view mirror support bracket.Disconnect the inside air moisture and windshield temperature sensor connector.
