Input Shaft Support Replacement (Gen 2) Automatic Transmission Unit

Input Shaft Support Replacement

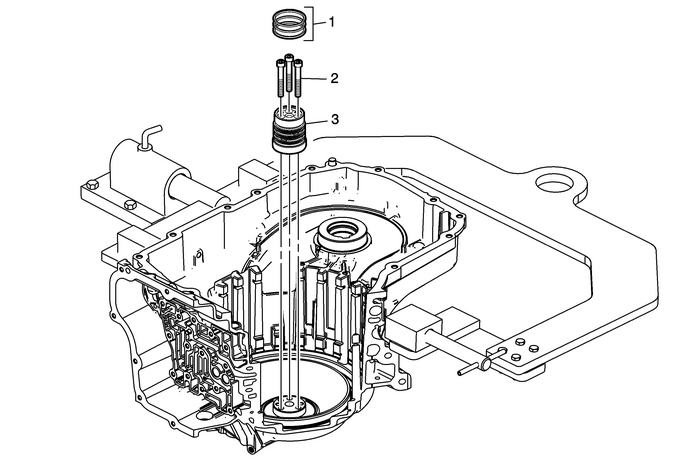

Callout

Component Name

3-5 Reverse and 4-5-6 Clutch Fluid Seals-(Qty:-3)

Note:

Discard the fluid seals. They are not reusable.Refer to3-5-Reverse and 4-5-6 Clutch Fluid Seal Ring Replacement.

Input Shaft Support Bolts-M6-x-50 (Qty:-3)

Caution:Refer toFastener Caution.

Tighten

12-Y (106-lb-in)

Input Shaft Support

Note:Inspect the support for wear, damage or porosity.
