Input Shaft Seal Replacement - Left (RPO MHC) Automatic Transmission Unit

Input Shaft Seal Replacement - Left

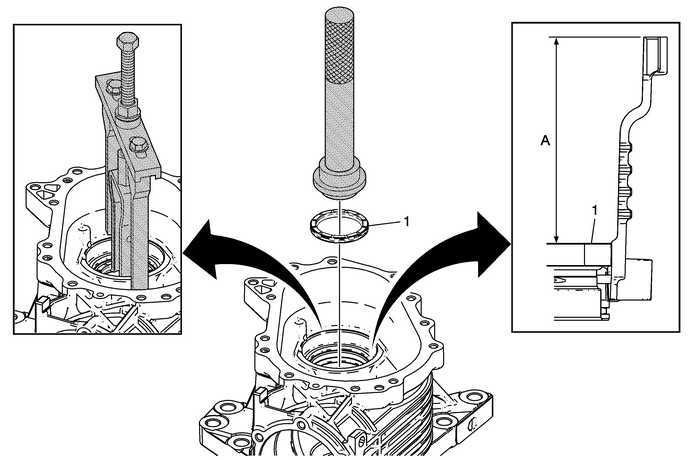

Callout

Component Name

1

Transfer Case Input Shaft Seal – Left

Caution:Do not use a screwdriver or punch to remove or install theseal. Using a screwdriver or punch to remove or install the sealmay damage the aluminum housing sealing surface.

ProcedureLightly lubricate the outer diameter-(OD) of the seal with clean gear lube prior toinstallation.To ensure proper alignment and depth of the seal, take four measurements every 90-degreesaround the seal circumference, verifying uniform depth. The distance from the topface of the machined surface of the bore to the metal flange of the seal (A) shouldbe 80.0-+/−-0.5-mm (3.15-+/−-0.02-in). Failure to follow these instructions will resultin replacement seal failure.

Note:Alignment of seal is critical and use of correct tool is necessary. The machined surfaceof the bore must be clean and free from scratches or nicks.

Special ToolsDT-48074 Input and Output Shaft Seal InstallerJ-8092 Driver HandleDT-26941/KM-J-26941 Bushing and Bearing Remover – 3–4-inDT-45124 Removal Bridge

For equivalent regional tools, refer toSpecial Tools
