Horn Replacement (Right Hand) Horn

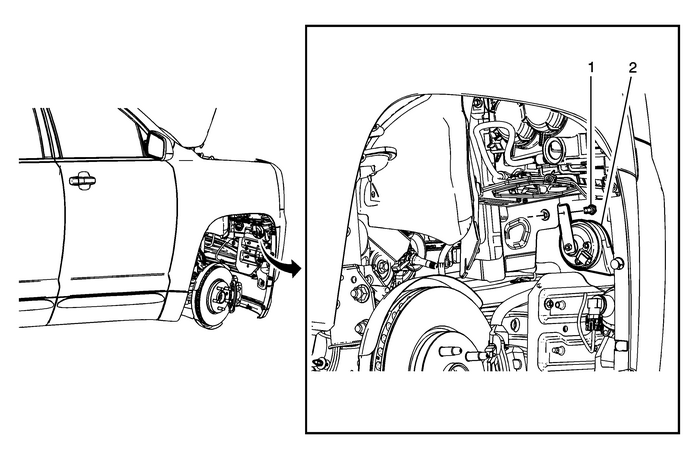

Horn Replacement

Callout

Component Name

Preliminary Procedure

Remove the right front wheelhouse liner. Refer toFront Wheelhouse Liner Replacement.

Remove the intake air duct. Ref toIntake Air Duct Replacement

1

Horn Bolt

Caution:Refer toFastener Caution.

Tighten

10-Y (89-lb-in)

2

Horn

Procedure

Disconnect the electrical connector.
