Hood Insulator Replacement Panels

-_

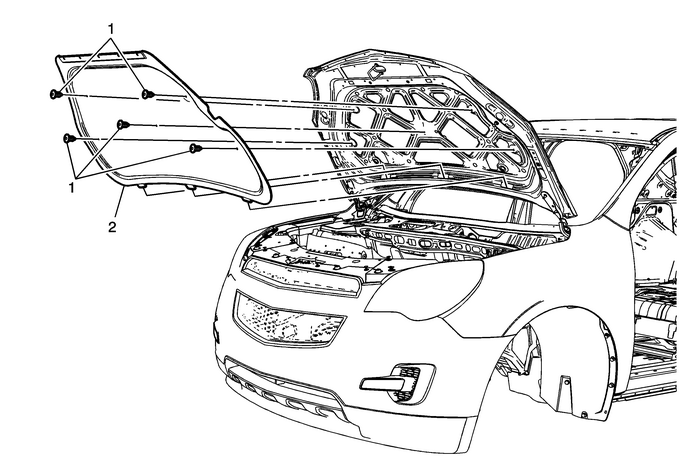

Hood Insulator Replacement

Callout

Component Name

Preliminary Procedure

Remove the hood front seal. Refer toHood Front Seal Replacement.

1

Hood Insulator Plastic Retainer (Qty:-5)

2

Hood Insulator

Procedure

Ensure the 3 integral tabs are secured to the hood.
