Heater Outlet Hose Replacement (LFX)

Heater Outlet Hose Replacement

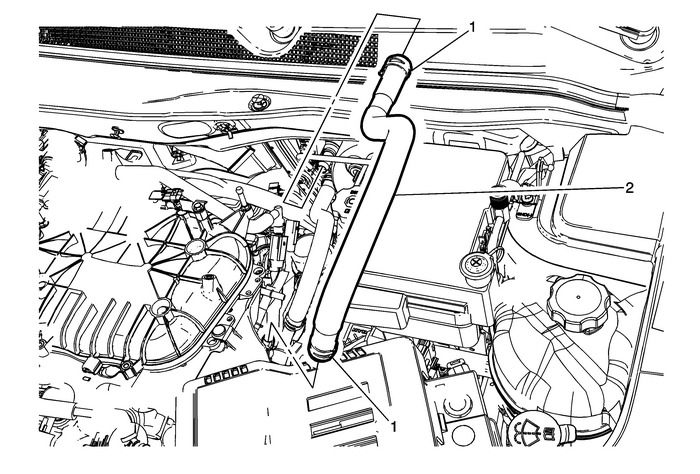

Callout

Component Name

Preliminary ProceduresDrain the cooling system. Refer toCooling System Draining and Filling.Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.

1

Heater Inlet Hose Clamps (Qty-2)

Procedure

Using J 38185 Hose Clamp Pliers reposition the heater inlet hose clamps.

Special Tools

J 38185 Hose Clamp Pliers

2

Heater Inlet Hose

Ventilation Ducts
...

Heater Outlet Hose Replacement (LEA)
Heater Outlet Hose ReplacementCalloutComponent NamePreliminary ProceduresDrain the cooling system. Refer toCooling System Draining and FillingRemove the intake manifold cover. Refer toIntake Manifold ...
