Heater Inlet Hose Replacement (LFX) Heater Lines

Heater Inlet Hose Replacement

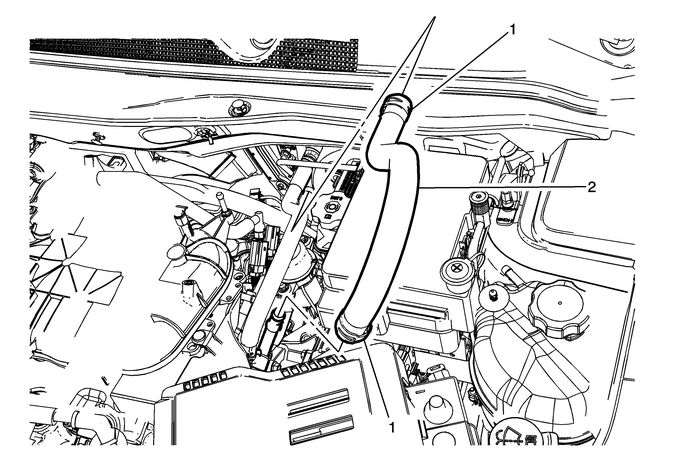

Callout

Component Name

Preliminary ProceduresDrain the cooling system. Refer toCooling System Draining and Filling.Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.

1

Heater Inlet Hose Clamps (Qty-2)

Procedure

Using J 38185 Hose Clamp Pliers reposition the heater inlet hose clamps.

Special Tools

J 38185 Hose Clamp Pliers

2

Heater Inlet Hose

Heating
...

Ventilation Ducts
...
