Heater Core Replacement

Heater Core Replacement

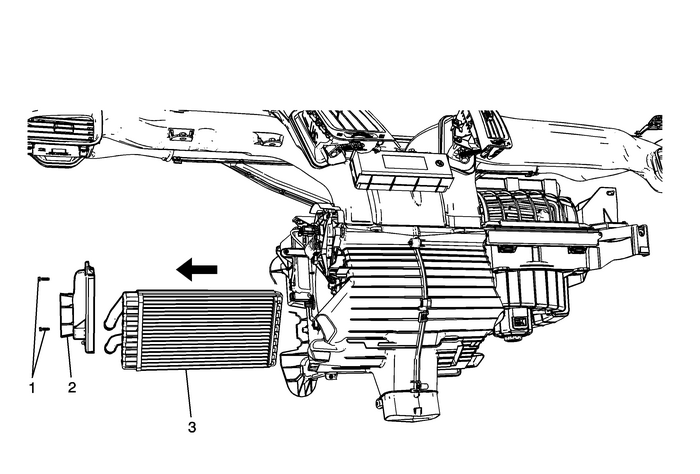

Callout

Component Name

Preliminary Procedure

Remove the heater and airconditioning evaporator and blowermodule. Refer toHeater and Air Conditioning Evaporator and Blower Module Removal and Installation.

1

Heater Core Cap Fasteners (Qty:-2)

2

Heater Core Cap

3

Heater Core

Procedure

Pull out the heater core.
