Chevrolet Equinox Owners Manual: Heated Rear Seats
| Warning If temperature change or pain to the skin cannot be felt, the seat heater may cause burns. To reduce the risk of burns, use care when using the seat heater, especially for long periods of time. Do not place anything on the seat that insulates against heat, such as a blanket, cushion, cover, or similar item. This may cause the seat heater to overheat. An overheated seat heater may cause a burn or may damage the seat. |

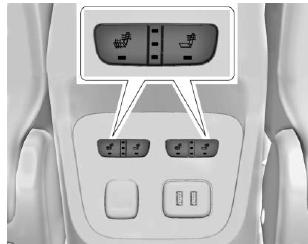

If equipped, the rear heated seat buttons are on the rear of the center console.
Press
to heat the left or right
outboard seat cushion and
seatback.
Press
to heat the left or right
outboard seatback only.
Press the button once for the highest setting. With each press of the button, the heated seat will change to the next lower setting, and then to the off setting. The lights indicate three for the highest setting and one for the lowest.
