Front Side Marker Lamp Bulb Replacement Lighting Exterior Lighting Side Markers

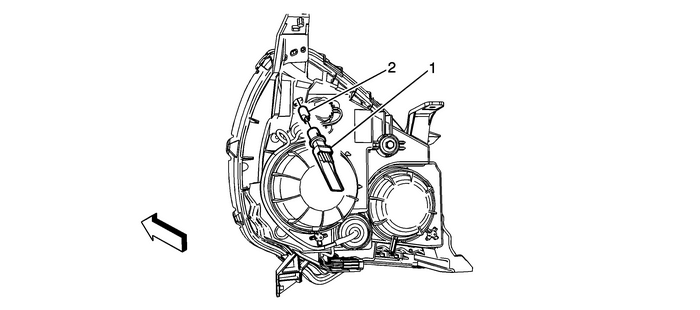

Front Side Marker Lamp Bulb Replacement

Callout

Component Name

Preliminary Procedure

Remove the headlamp assembly. Refer toHeadlamp Replacement.

1

Front Side Marker Lamp Bulb Socket

Procedure

Rotate the bulb socket counter-clockwise and remove from theheadlamp.

2

Front Side Marker Lamp Bulb

Tip:Pull the bulb straight from the lamp bulb socket.
