Front Side Door Window Switch Replacement Doors

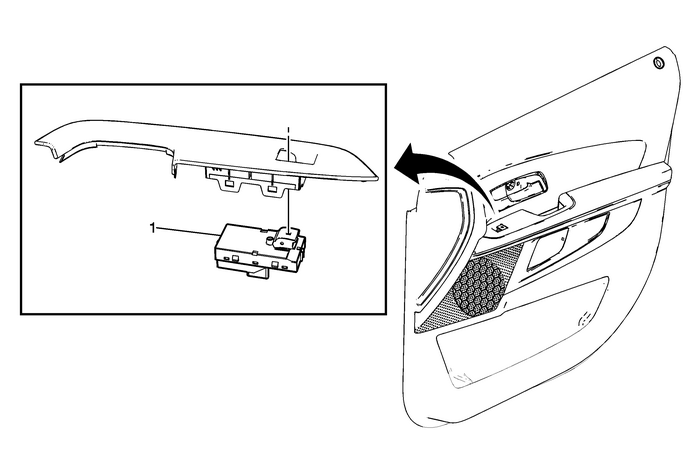

Front Side Door Window Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the front side door accessory switch mount plate.Refer toFront Side Door Accessory Switch Mount Plate Replacement.

1

Front Side Door Window Switch Assembly

ProcedureDisconnect the electrical connectors.Refer toControl Module Referencesfor programming and setupinformation.
